Submersible Proximity Switches for Dredging Equipment
Underwater position monitoring for dredging grabs, hatches and construction tooling. Review shock, sediment and protected cable routing.
Dredging and underwater construction place sensing equipment close to moving steelwork, sediment and handling loads. A proximity switch can provide a defined indication from a grab, hatch or tool mechanism when the sensor and target are installed within a workable detection geometry.
The practical installation is central to reliability. Bracket protection, cable restraints and service access should be reviewed together with the switch’s electrical and pressure requirements. A protected mounting location is often more useful than selecting a sensor by depth rating alone.
Choose the feedback your equipment needs.
For dredging & marine construction, start with the task below. These routes narrow the product search; the final configuration is reviewed against your installation and operating conditions.
Confirm a defined position
Review non-contact proximity switching for an open, closed, home or engaged indication.
Resolve together: Target geometry, sensing gap, mounting and required contact state.
Compare proximity switches ↗Follow the cylinder stroke
Review linear position feedback when the controller needs more than an end-position signal. The output follows travel in steps.
Resolve together: Stroke, resolution, output, magnet arrangement and installation envelope.
Explore linear position sensing ↗Connect the sensing point
Define the lead between the sensor and equipment interface, including any movement and maintenance access.
Resolve together: Mating parts, pin allocation, cable length, routing and end termination.
Explore cable assemblies ↗Where each component fits.
Detect the defined mechanical position.
Describe impact, vibration and target movement under load. Avoid positioning the sensing face where trapped debris can strike it.

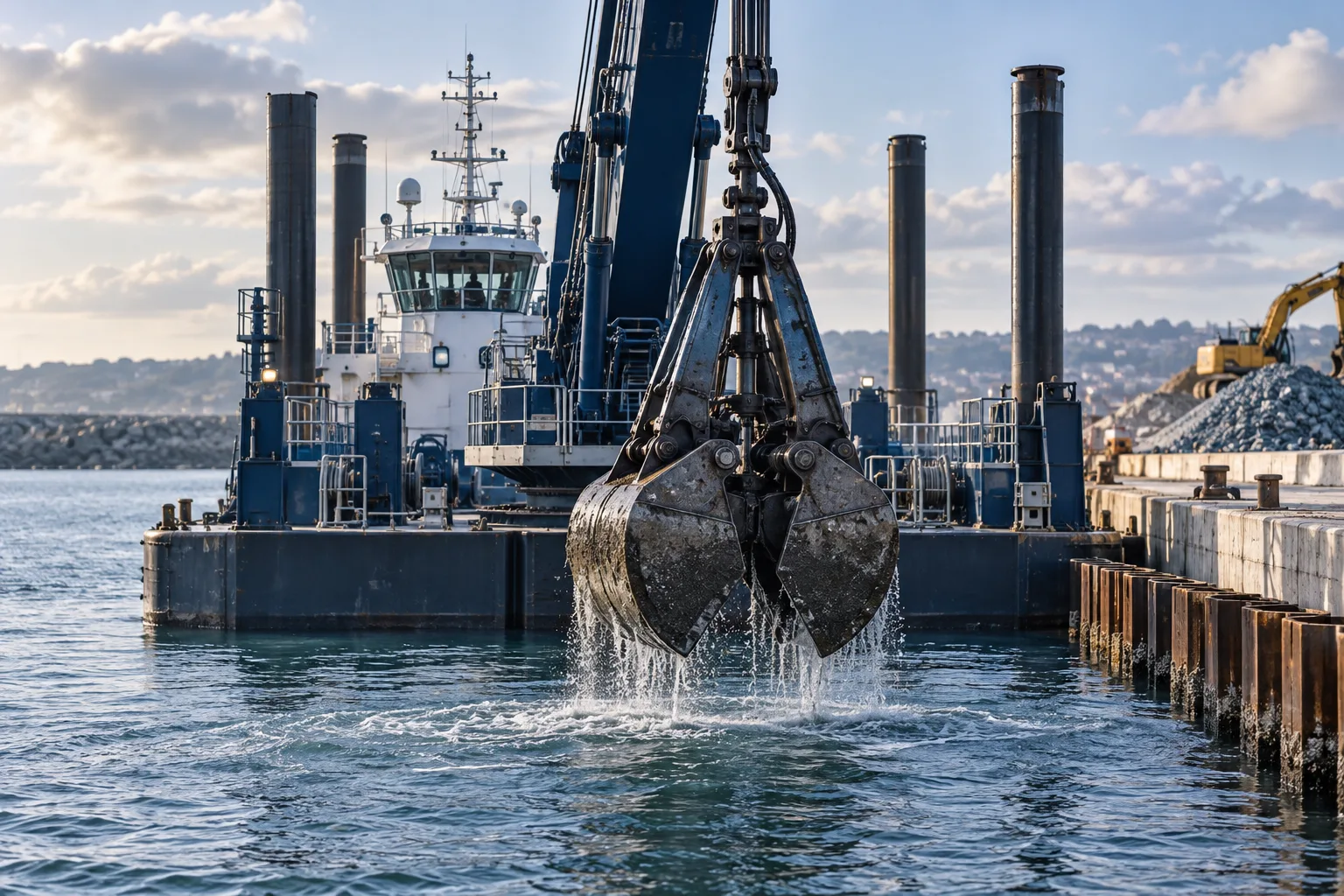

- Grabs and clamshell mechanisms
- Underwater hatches
- Construction tools
Make the service interface practical.
Consider a protected connector location reachable during planned maintenance. Specify whether the assembly is disconnected on deck or underwater.
- Exact mating reference and pin allocation
- Connection and disconnection conditions
- Access for inspection and replacement
Protect the route back to control.
Use a restrained route clear of grab jaws and exposed wear surfaces. Include abrasion, moving duty and replacement access in the cable brief.
- Installed route and required length
- Fixed or moving duty
- Materials, restraints and termination details
A switch protected inside a grab linkage
A guarded mounting point can keep the sensor away from direct impact while a target follows the linkage. Review the gap under load, accumulated mechanical clearance and how the cable exits the moving assembly without crossing an exposed edge.
Contact us ↗From the equipment to the input.
A typical functional path. The final arrangement depends on the equipment and project specification.
- 01
Moving equipment
Detect a defined jaw or linkage position where the equipment design allows a target.
- 02
Target & switch
The target reaches the defined detection point.
- 03
Cable assembly
A specified connection carries the switch state.
- 04
Control input
The equipment controller interprets the agreed contact logic.
The details to resolve together.
Sediment changes the installation
Allow for silt accumulation and cleaning access around brackets and targets.
Guard without obstructing detection
Protective metalwork must not interfere with the selected sensing principle.
Separate position from load
A jaw-position switch does not establish retained material, lifting load or clamping force.
Bring the installation into the brief.
Share what you have. A drawing, an existing part reference or a description of the operating requirement is a useful starting point.
Contact us ↗- Equipment drawing and required switching positions
- Maximum immersion pressure, duration, temperature and media
- Target geometry, mounting space and electrical input
- Cable route, mating connector and maintenance method
Application examples describe potential arrangements, not installed DepthLink case studies. Final suitability, ratings and test requirements are agreed for the selected assembly.
What needs to be confirmed?
Grabs and clamshell mechanisms
Detect a defined jaw or linkage position where the equipment design allows a target.
Underwater hatches
Indicate a specified hatch or latch position.
Construction tools
Provide home, deployed or retracted feedback on submerged hydraulic mechanisms.
Before you specify.
Can an underwater switch be used on a dredging grab?
It is an application to assess around the grab geometry, target, shock and cable route. The final assembly must be selected for those conditions.
What matters besides depth rating?
Mechanical protection, vibration, target tolerances, abrasion, cable movement and maintenance access are all relevant to the installed assembly.
See the complete connection.
Explore how DepthLink position switches, underwater cable assemblies and custom equipment interfaces work together. Contact our team to discuss your installation.
Explore system engineering ↗
