Underwater Position Monitoring for Marine Equipment
Position switches and subsea cable assemblies for moonpool hatches, retractable marine equipment and submerged docking mechanisms.

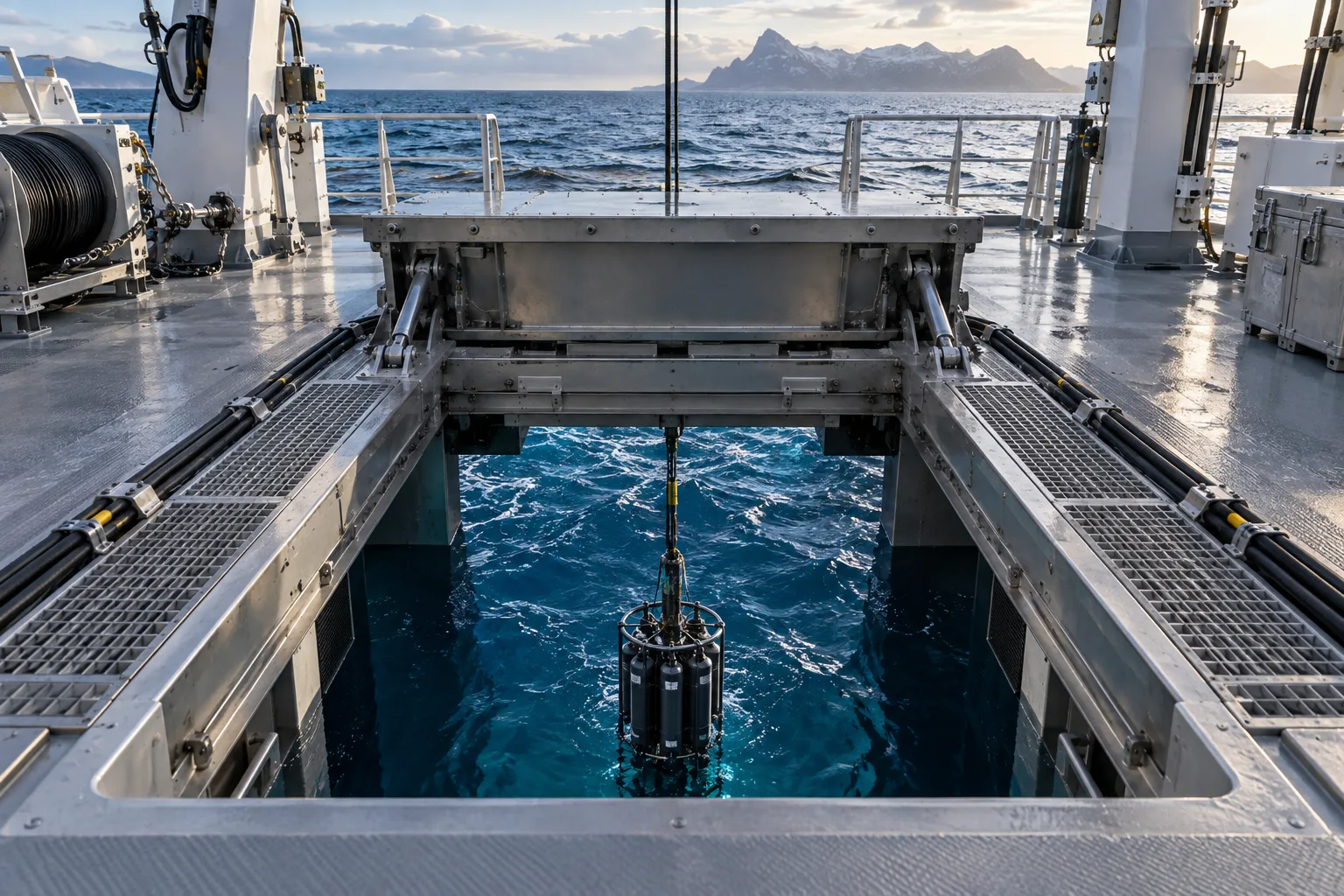

Vessels and dock installations contain equipment that moves through the waterline or operates below it. Underwater position feedback can help identify a defined hatch position, deployed mechanism or engaged latch.
The exposure may combine continuous immersion, splash, salt deposits and repeated maintenance handling. State the actual operating cycle instead of relying on a general marine description. The switch and cable interface must be considered alongside the surrounding mechanism.
Choose the feedback your equipment needs.
For marine vessels & dock equipment, start with the task below. These routes narrow the product search; the final configuration is reviewed against your installation and operating conditions.
Confirm a defined position
Review non-contact proximity switching for an open, closed, home or engaged indication.
Resolve together: Target geometry, sensing gap, mounting and required contact state.
Compare proximity switches ↗Detect physical actuation
Where a cam or moving feature can press a plunger, review a mechanical limit switch as another sensing method.
Resolve together: Operating force, travel, overtravel and a separate mechanical stop.
Explore mechanical limit switches ↗Connect the sensing point
Define the lead between the sensor and equipment interface, including any movement and maintenance access.
Resolve together: Mating parts, pin allocation, cable length, routing and end termination.
Explore cable assemblies ↗Where each component fits.
Detect the defined mechanical position.
Allow for equipment movement and target alignment during vessel operation. Identify required contact states at the two travel limits.
- Moonpool hatch mechanisms
- Retractable equipment
- Docking and handling equipment
Make the service interface practical.
Document bulkhead and hull-interface requirements separately from the sensor connection. A connector must not be assumed suitable as a hull penetration.
- Exact mating reference and pin allocation
- Connection and disconnection conditions
- Access for inspection and replacement
Protect the route back to control.
Review both immersion and movement where the cable follows retractable equipment. Protect it from hatch edges and handling gear.
- Installed route and required length
- Fixed or moving duty
- Materials, restraints and termination details
A retractable instrument carrier
Separate sensing points can identify the carrier’s stowed and deployed positions. A local cable assembly must accommodate the movement and connect at a maintainable interface. Neither indication independently confirms the instrument’s measurement performance.
Contact us ↗From the equipment to the input.
A typical functional path. The final arrangement depends on the equipment and project specification.
- 01
Moving equipment
Detect an agreed hatch or latch target position.
- 02
Target & switch
The target reaches the defined detection point.
- 03
Cable assembly
A specified connection carries the switch state.
- 04
Control input
The equipment controller interprets the agreed contact logic.
The details to resolve together.
Hull boundaries need their own review
Any hull penetration or class requirement must be specified and supported by the appropriate design evidence.
Define the maintenance condition
State whether access occurs on deck, in dry dock or underwater.
Monitor the required member
Hatch position and latch engagement are different observations and may require separate switches.
Bring the installation into the brief.
Share what you have. A drawing, an existing part reference or a description of the operating requirement is a useful starting point.
Contact us ↗- Equipment drawing and required switching positions
- Maximum immersion pressure, duration, temperature and media
- Target geometry, mounting space and electrical input
- Cable route, mating connector and maintenance method
Application examples describe potential arrangements, not installed DepthLink case studies. Final suitability, ratings and test requirements are agreed for the selected assembly.
What needs to be confirmed?
Moonpool hatch mechanisms
Detect an agreed hatch or latch target position.
Retractable equipment
Indicate deployed and stowed positions on immersed auxiliary mechanisms.
Docking and handling equipment
Provide local feedback from submerged locks, pins or moving platforms.
Before you specify.
Is a hatch-position switch proof of watertight closure?
No. It reports a defined target position. Seal integrity and watertightness require separate verification.
Can one assembly handle splash and immersion?
The complete exposure cycle must be specified, including pressure, temperature, salt exposure and handling. Suitability depends on the selected assembly.
See the complete connection.
Explore how DepthLink position switches, underwater cable assemblies and custom equipment interfaces work together. Contact our team to discuss your installation.
