Nano Connector

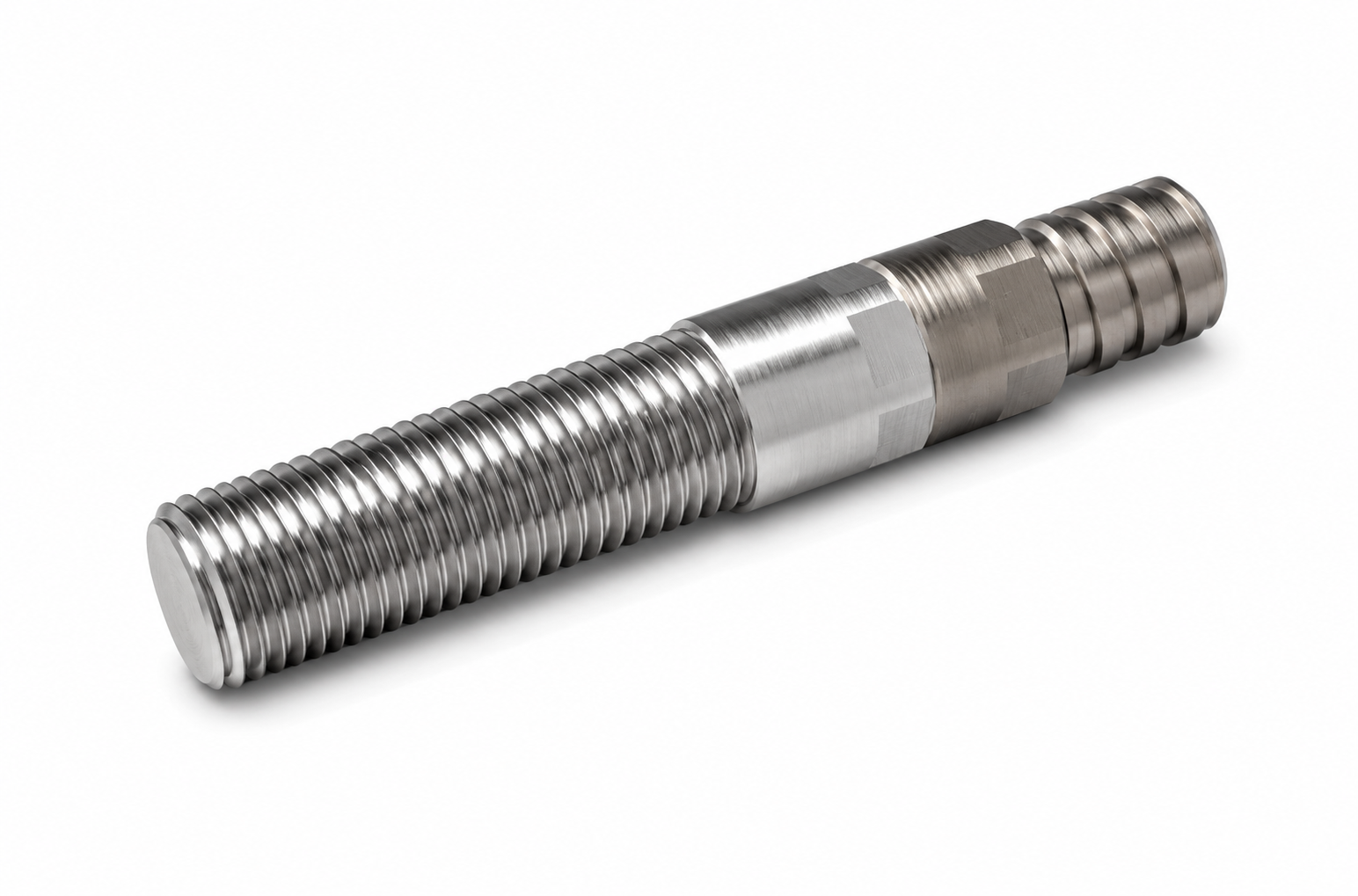

NAN6, 6 pin SPDT configuration for compact M12 subsea proximity switch designs.
Switches & Sensors
Subsea Proximity Switches
Non-contact subsea position sensing
Product coding selector
View Series Overview PDF
Part code
Select options
Choose a housing, rating, connector and material to generate a request-ready part code.
Showing all configurations
NANO-SUBSEA-PROXIMIT
Nano Subsea Proximity Switch - M12 Thread - Titanium
SUBSEA-PROXIMITY-SWI
Subsea Proximity Switch - 5/8 UNF Thread - Circular
NANO-SUBSEA-PROXIMIT
Nano Subsea Proximity Switch - M12 Thread
M12 thread
57mm housing
Nano connector
700bar
MICRO-COMPACT-SUBSEA
Micro/Compact Subsea Proximity Switch - 5/8 UNF Thread
5/8 UNF
48mm housing
Micro connector
Compact
SUBSEA-PROXIMITY-SWI
Subsea Proximity Switch - 5/8 UNF Thread - Micro
5/8 UNF
70mm housing
Micro connector
SPDT
SUBSEA-PROXIMITY-SWI
Subsea Proximity Switch - 5/8 UNF Thread - Right Angle
Right angle
5/8 UNF
Micro connector
Low profile
SUBSEA-PROXIMITY-SWI
Subsea Proximity Switch - M12 Thread
M12 thread
Non-contact
Subsea rated
Compact
Need A Specific Switch Configuration?
DepthLink can help match thread size, connector format, material and cable exit style to your subsea assembly. Send the pressure rating, envelope and switching logic you need and we will help narrow the range.
Connecting technologies. Powering possibilities.
Full ocean depth sensing
Subsea Proximity Switches
Full ocean depth sensing, compact by design, engineered for reliability.
10,000 m Full ocean depth
1A / 3A Current ratings
SS / MIC625 / TI Housing materials
Connecting technology. Powering possibilities.
Subsea
Proximity Switches
Built to perform.
Proven configurations. Engineered for extreme underwater performance.
Product Coding Structure
DL1Brand
–
PS2Product
Proximity Switch – T2-M183Body
Thread Size
& Length – 3A4Rating
Current Rating – MIC35Connector Type
& Pins – SS6Housing
Material
Proximity Switch – T2-M183Body
Thread Size
& Length – 3A4Rating
Current Rating – MIC35Connector Type
& Pins – SS6Housing
Material
Example part number: DL-PS-T2-M18-3A-MIC3-SS
- 1 Brand
- DL (DepthLink)
- 4 Rating
- 3A (3 Amp)
- 2 Product
- PS (Proximity Switch)
- 5 Connector
- Micro Circular, 3-pin
- 3 Body
- T2-M18 (M18 x 48 mm)
- 6 Housing Material
- 316L Stainless Steel
3 Body (Thread Size & Length)
| Code | Thread Size (Order Example) |
Length (Thread) |
Overall Length (Typical)* |
|---|---|---|---|
| T1-M12 | M12 | 33 mm | ~55 mm |
| T2-M18 | M18 | 48 mm | ~70 mm |
| T2-5/8 | 5/8" UNF | 48 mm | ~70 mm |
| T2-3/4 | 3/4" UNF | 48 mm | ~70 mm |
| T3-M18 | M18 | 70 mm | ~92 mm |
| T3-5/8 | 5/8" UNF | 70 mm | ~92 mm |
| T3-3/4 | 3/4" UNF | 70 mm | ~92 mm |
* Overall length includes connector. Actual length may vary slightly by configuration.
4 Rating (Current Rating)
| Code | Rating | Use / Application |
|---|---|---|
| 1A | 1 Amp | For low power signalling to PLC / DCS and control systems. Short body types only: 33 mm & 48 mm |
| 3A | 3 Amp | For higher power circuits up to 100W with high in-rush protection of 15A. Long body type only: 70 mm |
5 Connector Type & Pins
| Code | Type | Pins Available | Notes |
|---|---|---|---|
| NAN6 | Nano Connector | 6 | SPDT only. (3 pins used, 3 not used) |
| MICx | Micro Circular | 2, 3, 4 pins | See pin-out views |
| STDx | Standard Circular | 2, 3, 4 pins | See pin-out views |
| MICRAx | Micro Circular Right Angle Plug | 2, 3, 4 pins | Right angle option |
6 Housing Material
| Code | Material | Availability |
|---|---|---|
| SS | 316L Stainless Steel | Standard |
| MIC625 | Inconel 625 | Optional |
| TI | Titanium Grade 5 | Optional |
Connector type options
Macro Product Renders
Representative DepthLink proximity switch renders for nano, micro circular, standard circular and micro right-angle connector configurations.

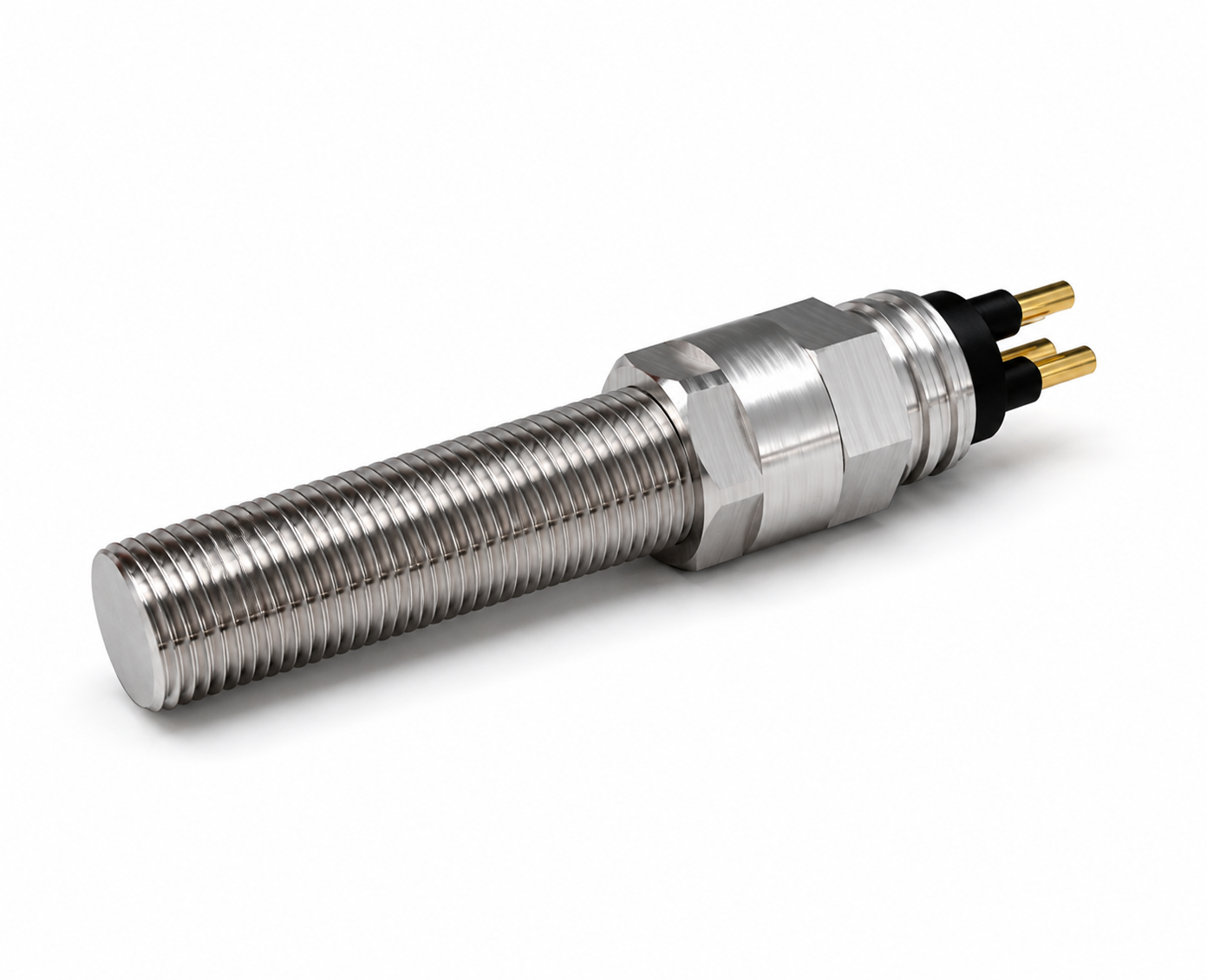

Micro Circular
MICx connector format with 2, 3 or 4 pin options for compact subsea switching.

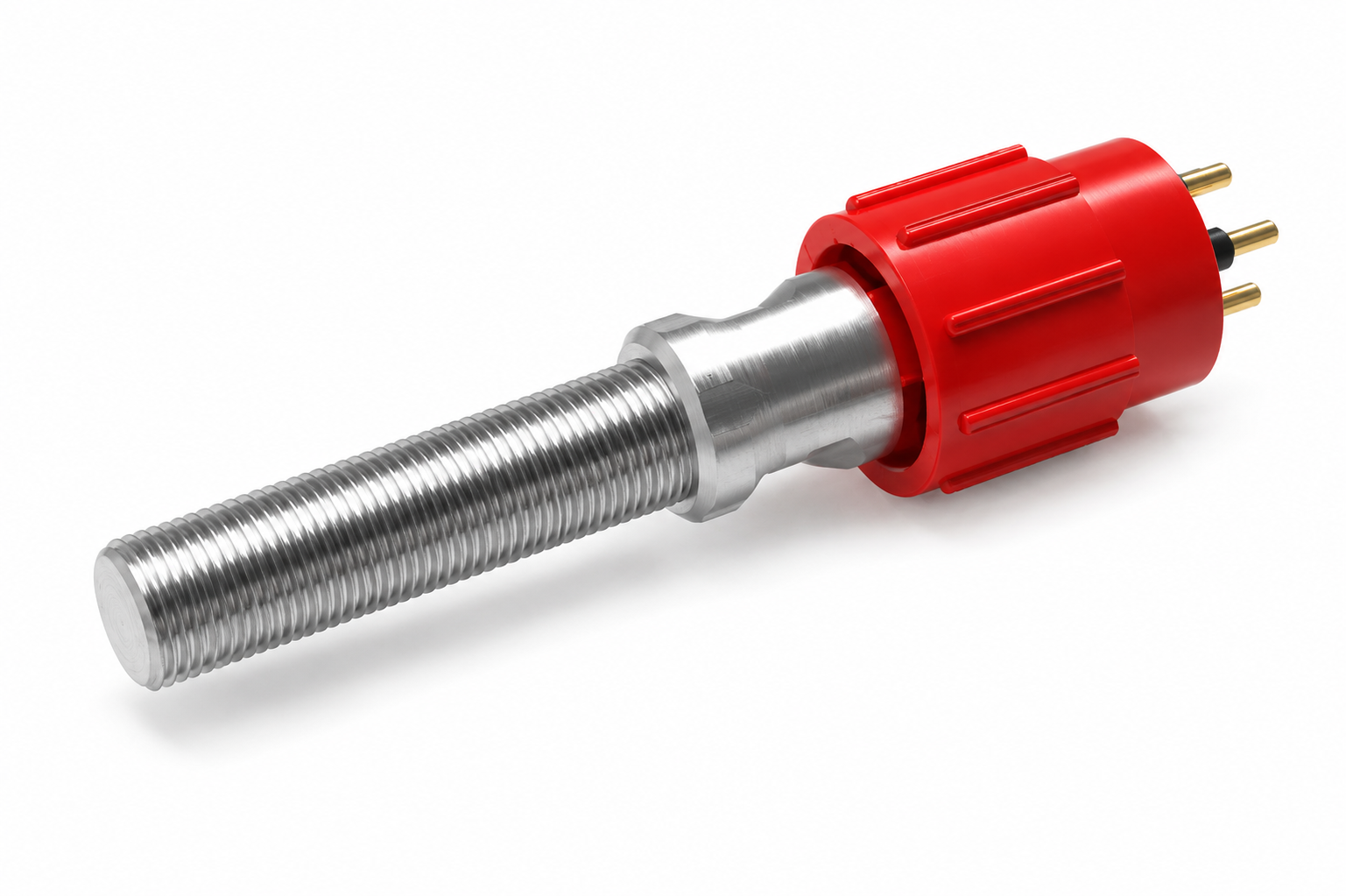

Standard Circular
STDx robust subsea circular connectors with 2, 3 or 4 pin options.

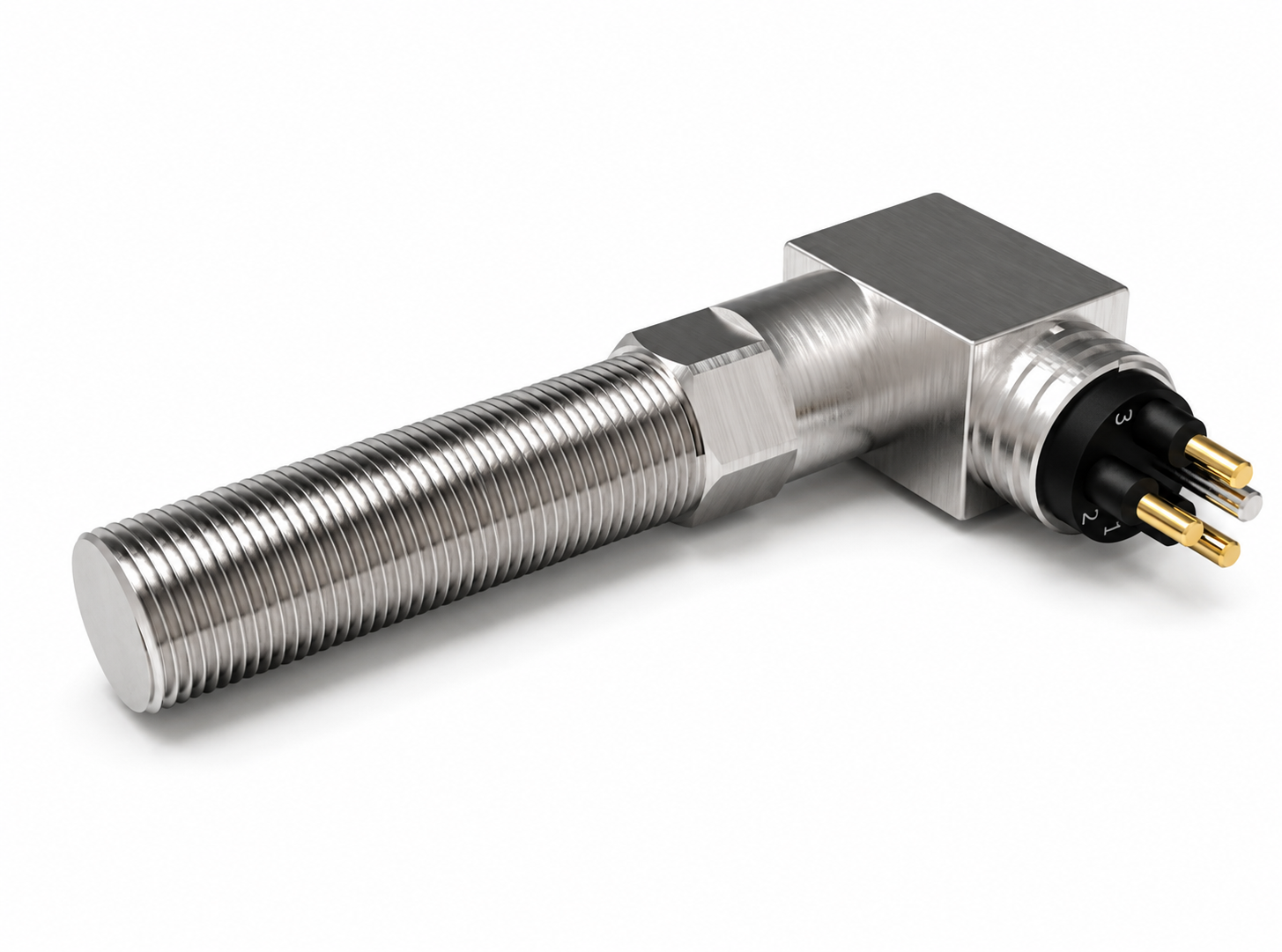

Micro Circular Right Angle
MICRAx 90 degree plug option for tight installation envelopes and cable routing constraints.
Pin-out views
Male Face View Pin-Out Diagrams
Searchable SVG pin-out references for 2 pin, 3 pin, 4 pin and 6 pin NAN6 proximity switch connectors.
2 Pin (x2)
3 Pin (x3)
4 Pin (x4)
6 Pin (NAN6)
N/O = Normally Open | N/C = Normally Closed | SPDT = Single Pole Double Throw
