Underwater Gate Position Switches for Locks & Dams
Position feedback for submerged lock gates, sluices, flood barriers and locking mechanisms, with integrated connector and cable options.
Lock and dam controls need to distinguish a movement command from a confirmed mechanical position. An underwater position switch can provide a local indication where the target, gate linkage or locking mechanism is submerged.
Many installations use above-water limit switches at the hoist. Local submerged sensing is a different arrangement: it observes a target near the mechanism itself. Establish which part of the equipment the control system needs to monitor before choosing the sensor location.
Choose the feedback your equipment needs.
For locks, dams & flood control, start with the task below. These routes narrow the product search; the final configuration is reviewed against your installation and operating conditions.
Confirm gate and latch states
Place sensing points on the gate and locking member where these move independently.
Resolve together: Debris clearance, water-level variation and service access.
Compare proximity switches ↗Detect physical actuation
Where a cam or moving feature can press a plunger, review a mechanical limit switch as another sensing method.
Resolve together: Operating force, travel, overtravel and a separate mechanical stop.
Explore mechanical limit switches ↗Connect the sensing point
Define the lead between the sensor and equipment interface, including any movement and maintenance access.
Resolve together: Mating parts, pin allocation, cable length, routing and end termination.
Explore cable assemblies ↗Where each component fits.
Detect the defined mechanical position.
Account for gate deflection, bearing movement and target alignment. The installed sensing window must remain usable across the permitted mechanical tolerances.

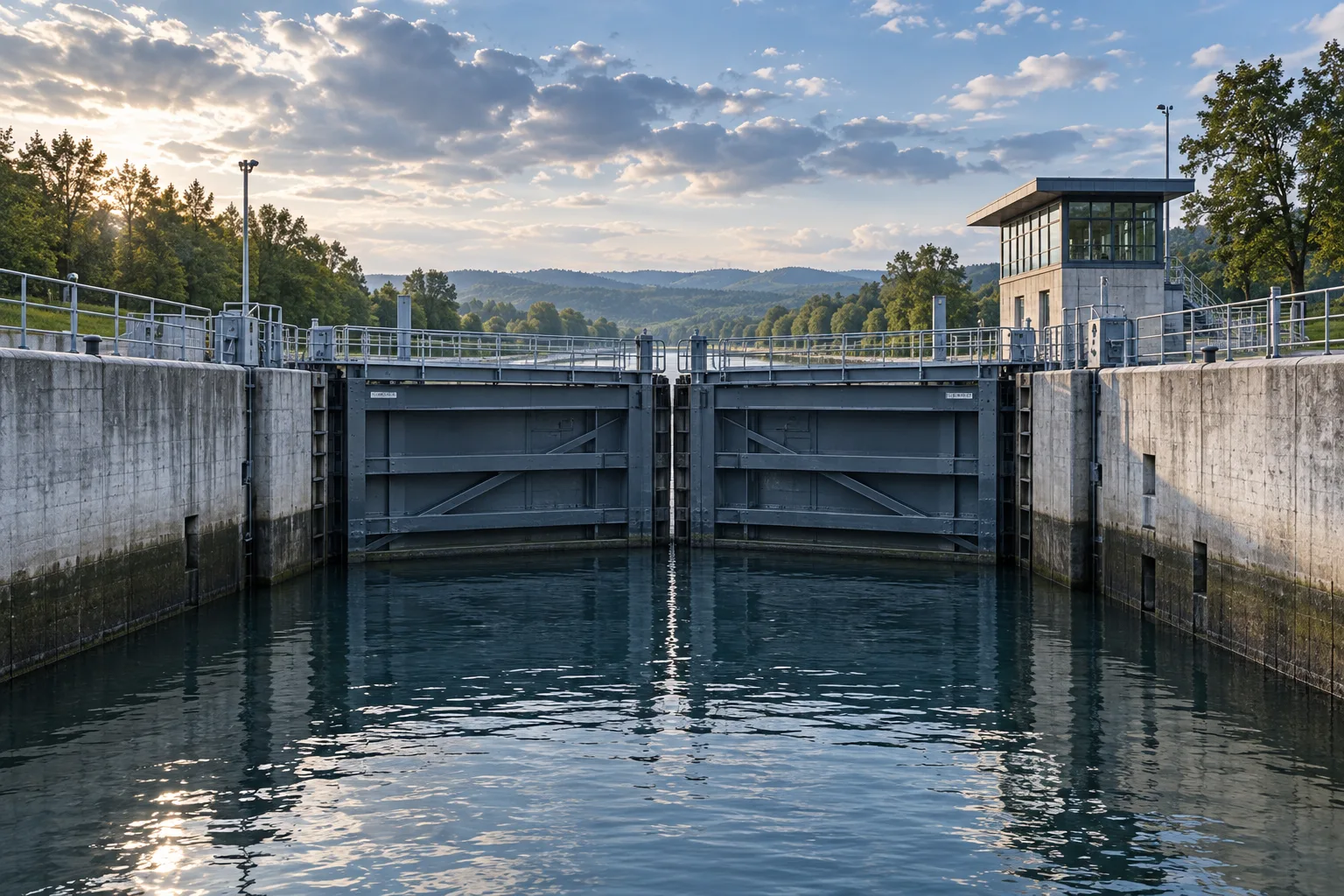

- Lock and sluice gates
- Filling and emptying valves
- Gate locks and pins
Make the service interface practical.
Select and position the connection for the maintenance access available at the lock wall or gate. Identify whether mating occurs in air or underwater.
- Exact mating reference and pin allocation
- Connection and disconnection conditions
- Access for inspection and replacement
Protect the route back to control.
Protect the cable from floating debris, gate movement and abrasion at concrete or steel edges. Allow controlled movement where the assembly crosses a moving joint.
- Installed route and required length
- Fixed or moving duty
- Materials, restraints and termination details
Separate gate position from lock engagement
A gate reaching its closing position and a locking pin reaching engagement are two different events. Separate sensing points can provide those indications to the control system. Their sequencing, fault response and any interlocking function belong in the installation’s control design.
Contact us ↗From the equipment to the input.
A typical functional path. The final arrangement depends on the equipment and project specification.
- 01
Moving equipment
Detect a defined open, closed or seated position at a submerged target.
- 02
Target & switch
The target reaches the defined detection point.
- 03
Cable assembly
A specified connection carries the switch state.
- 04
Control input
The equipment controller interprets the agreed contact logic.
The details to resolve together.
Design for the real waterway
Describe silt, debris, freshwater or brackish exposure and flood conditions alongside depth.
Do not confuse position with sealing
A target reaching the switch does not independently confirm a watertight gate seal.
Define the control responsibility
State required contact logic and fault monitoring. Suitability for an interlock requires assessment of the complete system.
Bring the installation into the brief.
Share what you have. A drawing, an existing part reference or a description of the operating requirement is a useful starting point.
Contact us ↗- Equipment drawing and required switching positions
- Maximum immersion pressure, duration, temperature and media
- Target geometry, mounting space and electrical input
- Cable route, mating connector and maintenance method
Application examples describe potential arrangements, not installed DepthLink case studies. Final suitability, ratings and test requirements are agreed for the selected assembly.
What needs to be confirmed?
Lock and sluice gates
Detect a defined open, closed or seated position at a submerged target.
Filling and emptying valves
Confirm specified end positions on an underwater valve or linkage.
Gate locks and pins
Indicate engagement or withdrawal of a locking member where a suitable target can be fitted.
Before you specify.
Should the switch be on the hoist or underwater at the gate?
It depends on what must be confirmed. Hoist travel and gate position can differ because of the mechanism between them. Review the required indication and maintenance access with the gate designer.
Can separate switches indicate open, closed and locked?
Potentially, using separate targets and sensing points. The mounting geometry, contact arrangement and control logic must be defined for the installation.
See the complete connection.
Explore how DepthLink position switches, underwater cable assemblies and custom equipment interfaces work together. Contact our team to discuss your installation.
Explore system engineering ↗
