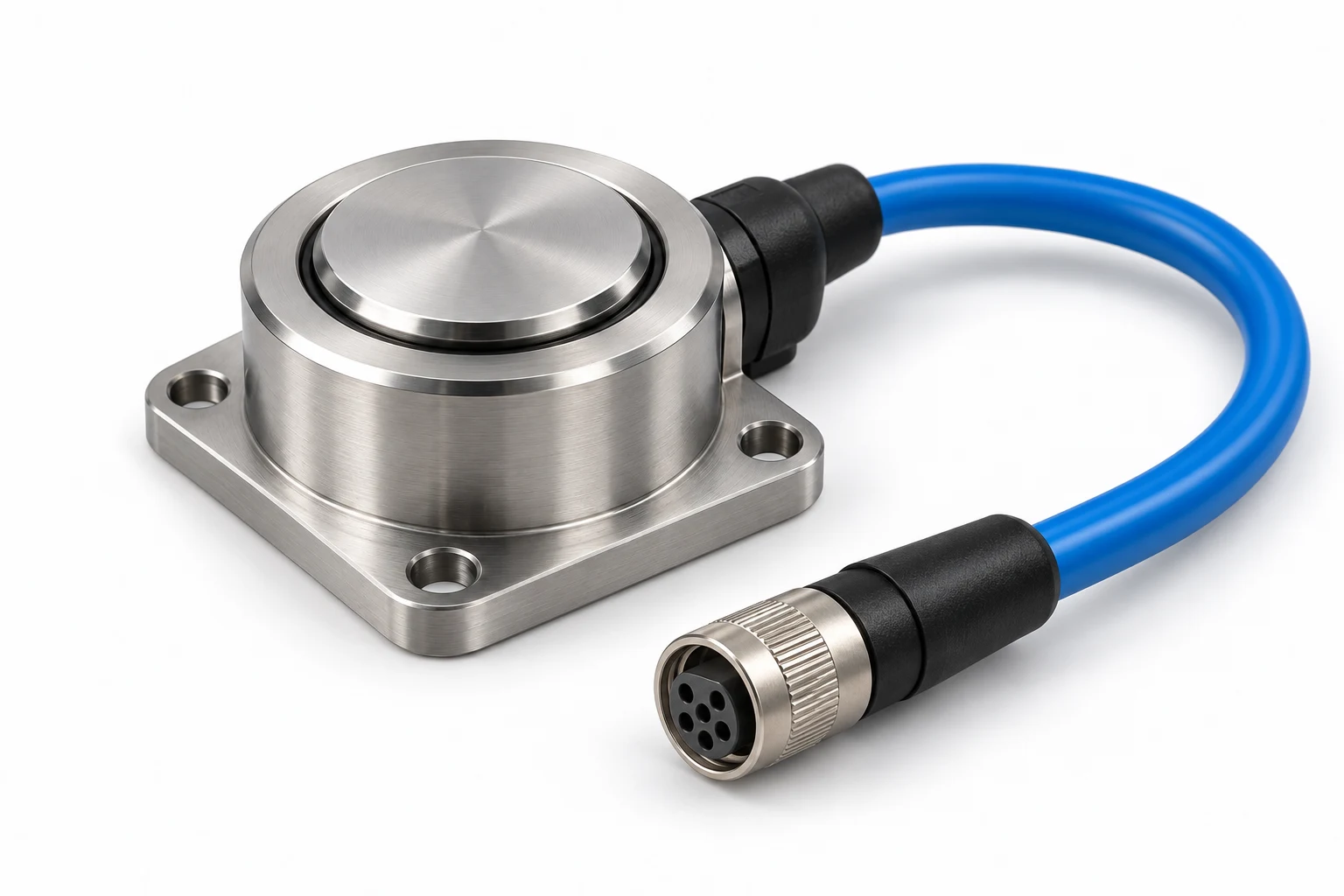

Illustrative configuration with subsea termination. Final dimensions and interfaces follow the agreed drawing.
Low-Profile Subsea Pushbutton
CONFIGURED TO YOUR APPLICATIONA compact surface-mounted pushbutton for underwater tools and confined subsea installations. Low body height, a protected actuation face and a moulded Nano cable connection support a coordinated assembly.
Why choose this configuration?
Consider when a flange-mounted body and side cable exit suit the available space.
- Actuation
- Manual momentary pushbutton
- Installation
- Low flange mounting with side cable exit
Choose the mounting and connection around the mechanism, then match the electrical and immersion duty.
Compare sensing methods ↗Compact control. Complete integration.
A broad button face sits in a compact guarded housing. The flange layout and cable exit can be developed around the available mounting surface and handling envelope.
Actuate
Define how the operator, mechanism or magnetic target produces the input.
Connect
Match the contact function, cable and Nano subsea termination to the control circuit.
Verify
Test the complete configuration against the agreed immersion and operating duty.
Specify the assembly.
Resolve every interface.
Low profile describes the proposed package, not its pressure rating. Operating force at depth and repeated-actuation performance must be verified for the final design.
Key engineering inputs
- Available body height and flange footprint
- Button access with gloves or the intended tool
- Cable exit direction and minimum bend radius
- Return force, duty cycle and contact function
No pressure, electrical or functional-safety certification is implied by this overview.
| Configuration | Configuration by enquiry; ratings and dimensions confirmed for the agreed assembly |
|---|---|
| Actuation | Manual momentary pushbutton |
| Installation | Low flange mounting with side cable exit |
| Service environment | Subsea immersion; specify hydrostatic pressure, duration, media and temperature |
| Electrical interface | Contact function and switching / carrying loads agreed for the control circuit |
| Cable & connector | Sealed moulded cable with Nano subsea termination; mating pair and pin allocation to agree |
| Wetted materials | Stainless steel, titanium, Inconel or Monel subject to design and duty review |
| Verification | Agree pressure, insulation and functional cycling tests with acceptance criteria |
Where this configuration fits.
Compact subsea tools
Integrate a local control without a long rear mounting shank.
Review the application ↗Underwater equipment frames
Mount to an accessible face with a protected cable route.
Review the application ↗Submerged service stations
Define a clear operating action and practical access for maintenance.
Review the application ↗One coordinated
engineering brief.
Review wetted materials, static seals, mounting and cable construction together. Titanium, Inconel and Monel options require an agreed grade and evaluation of the complete design.
Specify the exact Nano mating pair and pin allocation. A connector’s immersion rating does not automatically establish the switch assembly rating or permit underwater mating.
Explore material options ↗From switch to control system
- Subsea switch housing and actuation interface
- Sealed cable exit and strain relief
- Custom cable length, conductors and jacket
- Nano subsea connector and mating assembly
- Agreed inspection, test scope and documentation
Tell us how it needs to work.
Contact our team to discuss your application, pricing and lead time.
