Position feedback for Water & Wastewater

Specify underwater position switches, connectors and cables for wastewater penstocks, submerged valves and water-treatment mechanisms.

Water and wastewater equipment needs clear feedback when a gate, valve or moving mechanism reaches its intended position. Where the sensing point stays below the waterline, the switch and its electrical termination must be specified for the actual immersion conditions—not simply for outdoor use.

A switch at the mechanism can report a defined open, closed or home position to the plant control system. That indication is distinct from measuring tank level, flow or water quality. DepthLink can review the switch, target, connector and cable as one application-specific assembly.

FROM APPLICATION TO PRODUCT

Choose the feedback your equipment needs.

For water & wastewater position monitoring, start with the task below. These routes narrow the product search; the final configuration is reviewed against your installation and operating conditions.

01

Confirm gate or mechanism position

Select a sensing point that can be inspected and cleaned in the actual process media.

Resolve together: Fouling, treatment chemicals, water temperature and maintenance access.

Compare proximity switches ↗
02

Detect physical actuation

Where a cam or moving feature can press a plunger, review a mechanical limit switch as another sensing method.

Resolve together: Operating force, travel, overtravel and a separate mechanical stop.

Explore mechanical limit switches ↗
03

Connect the sensing point

Define the lead between the sensor and equipment interface, including any movement and maintenance access.

Resolve together: Mating parts, pin allocation, cable length, routing and end termination.

Explore cable assemblies ↗
THREE PARTS OF THE CONNECTION

Where each component fits.

01 / Switches

Detect the defined mechanical position.

Keep the sensing face and target clear of likely solids accumulation. Review the installed gap, target material and the electrical state that the PLC should see at each position.

  • Penstocks and slide gates
  • Submerged isolation valves
  • Cleaning and handling mechanisms
Explore switches ↗
02 / Connectors

Make the service interface practical.

Locate separable interfaces around the maintenance method. A connection that can only be accessed during a tank drain-down has a different service requirement from one intended to be disconnected underwater.

  • Exact mating reference and pin allocation
  • Connection and disconnection conditions
  • Access for inspection and replacement
Explore connectors ↗
03 / Cabling

Protect the route back to control.

Route the signal cable away from scrapers, chains and cleaning equipment. Specify the water chemistry and cleaning agents so jacket and termination materials can be reviewed.

  • Installed route and required length
  • Fixed or moving duty
  • Materials, restraints and termination details
Explore cabling ↗

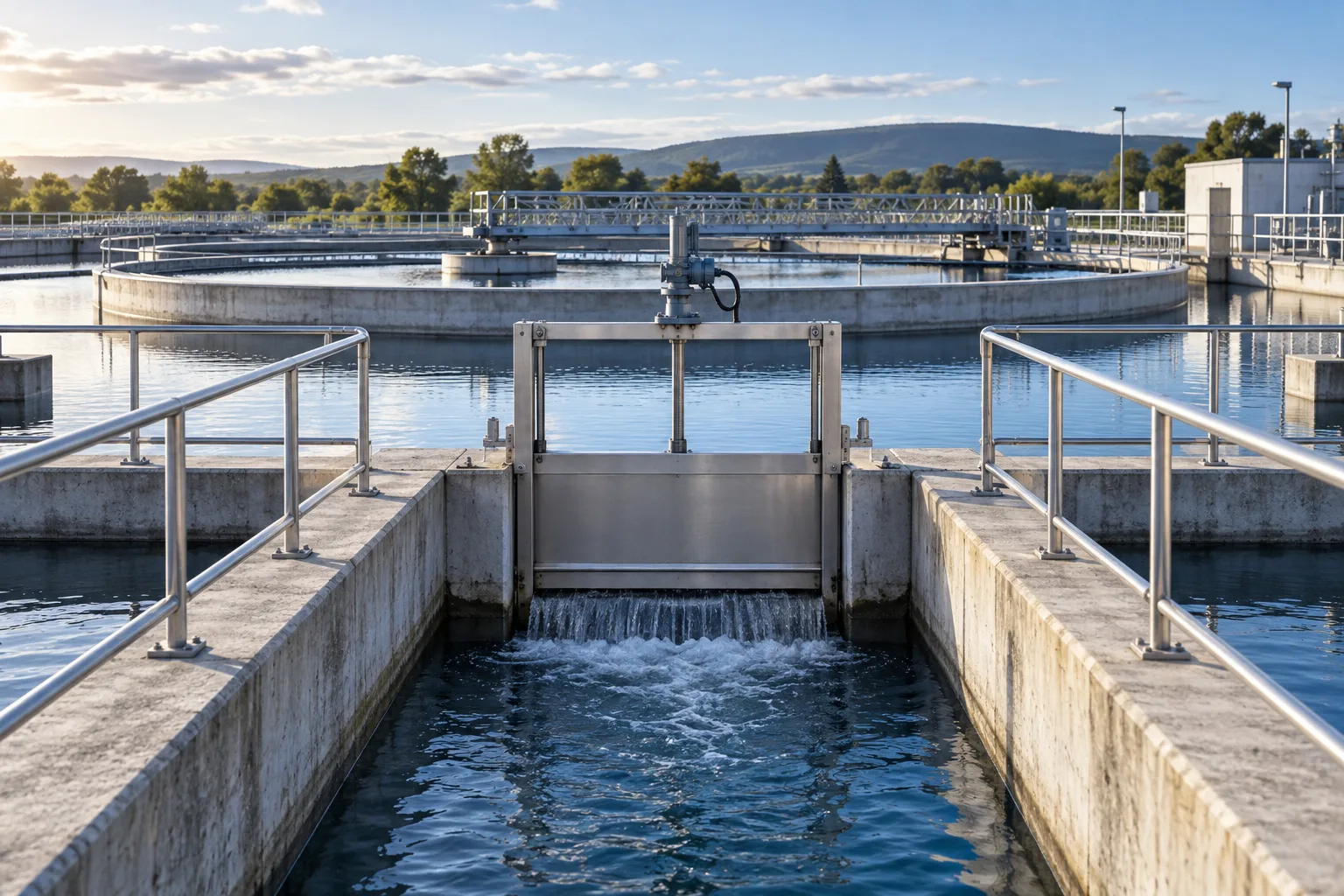

Illustrative water & wastewater position monitoring setting. Final sensing arrangements depend on the equipment design.
Illustrative water & wastewater position monitoring setting. Final sensing arrangements depend on the equipment design.
IN PRACTICE

A penstock with sensing at the gate

When a gate moves through a flooded channel, a fixed switch can detect a target on the moving member. The installation brief should identify the switching point, permitted overtravel and how maintenance staff will reach the sensor. A second switch can provide a separate open indication if the control design requires it.

Contact us ↗
FOLLOW THE CONNECTION

From the equipment to the input.

A typical functional path. The final arrangement depends on the equipment and project specification.

  1. 01

    Moving equipment

    Detect the open or closed target position on an immersed gate or linkage.

  2. 02

    Target & switch

    The target reaches the defined detection point.

  3. 03

    Cable assembly

    A specified connection carries the switch state.

  4. 04

    Control input

    The equipment controller interprets the agreed contact logic.

DESIGN CONSIDERATIONS

The details to resolve together.

Wastewater is a material-selection question

Provide the expected media, cleaning chemicals, temperature and immersion duration. A seawater-rated assembly is not automatically suitable for every wastewater process.

Define the observed condition

A closed-position signal confirms a switching point; it does not demonstrate gate leak-tightness or isolation.

Plan replacement access

Agree cable identification, accessible junction points and how the assembly is removed without damaging the long cable run.

START THE CONVERSATION

Bring the installation into the brief.

Share what you have. A drawing, an existing part reference or a description of the operating requirement is a useful starting point.

Contact us ↗
  • Equipment drawing and required switching positions
  • Maximum immersion pressure, duration, temperature and media
  • Target geometry, mounting space and electrical input
  • Cable route, mating connector and maintenance method

Application examples describe potential arrangements, not installed DepthLink case studies. Final suitability, ratings and test requirements are agreed for the selected assembly.

SENSING DUTIES

What needs to be confirmed?

Penstocks and slide gates

Detect the open or closed target position on an immersed gate or linkage.

Submerged isolation valves

Provide discrete end-position feedback where an accessible dry-mounted switch is impractical.

Cleaning and handling mechanisms

Indicate the home or travel limit of an immersed carriage or movable assembly.

SPECIFICATION QUESTIONS

Before you specify.

Is this the same as a wastewater level switch?

No. These applications concern the position of a mechanical gate, valve or moving part. Tank level requires a separately specified level-measurement or level-switching device.

Can a switch remain immersed in a treatment tank?

That depends on the selected assembly and its agreed pressure, temperature, media and immersion duty. Include the cable entry and connector in the review, not only the sensor body.

CUSTOM SYSTEM ENGINEERING

See the complete connection.

Explore how DepthLink position switches, underwater cable assemblies and custom equipment interfaces work together. Contact our team to discuss your installation.

Explore system engineering ↗
PRODUCT ROUTES

Build the connection around your system.

START WITH YOUR REQUIREMENT

Let’s define the right configuration.

Share your operating conditions, interfaces and quantities. Partial information is enough to start.

Contact us ↗
application · REV 01

Position monitoring in water and wastewater equipment

Define sensing and cabling requirements for submerged gates, valves and moving treatment equipment.

Identify the motion and the water conditions

For a submerged gate or valve, distinguish end-position indication from travel measurement. Describe whether the installation is normally submerged, intermittently flooded or exposed during maintenance. Include the process medium and any cleaning exposure in the material review.

Plan access, fouling clearance and cable support

Document accumulated debris, fouling and access constraints around the target or striker. Position the sensing arrangement where its geometry can be inspected and adjusted. Provide protected cable routing and define a serviceable connection point suitable for the maintenance method.

Information to include in your enquiry

Use the following checklist to capture the configuration. Where a value or drawing is not available, identify it as an open requirement for the engineering review.

Information to include in your enquiry
RequirementWhat to record
MechanismPenstock, submerged valve, gate or moving treatment equipment
MediumWater chemistry, solids, cleaning and temperature
MaintenanceIsolation, access, inspection and replacement method
Signal routeController input, connector placement and supported cable run

Confirm the complete configuration

Confirm the final part and assembly numbers, documentation revision and agreed acceptance requirements with the quotation. Product imagery is useful for identifying the concept; approved drawings and configuration-specific records define the supplied assembly.

Choose the sensing location around fouling and access

A switch suitable for clean water is not automatically suitable for every wastewater process. Record the media, treatment chemicals, solids, cleaning method and immersion conditions. Leave room to inspect the sensing face or plunger and replace the cable assembly.

Choose the sensing location around fouling and access
EquipmentFeedback needInstallation concern
Penstock or gateOpen / closed stateDebris around target or striker
Valve actuatorEndpoint or intermediate strokeMechanical link between actuator and valve
Moving screen or mechanismHome or service positionSolids, vibration and cable protection
Submerged assemblyReliable local signal connectionMedia compatibility, cleaning and maintenance access

Specification questions

What should I provide to start an engineering review?

Send the application and movement description, environmental conditions, control-system interface and any existing drawings or part references. Include the required cable route and the points that still need to be resolved.

Does seawater compatibility prove wastewater compatibility?

No. Wastewater chemistry, cleaning agents, temperature and solids can create different conditions. Select the housing, seals, target and cable for the actual media.

Continue specifying your system
