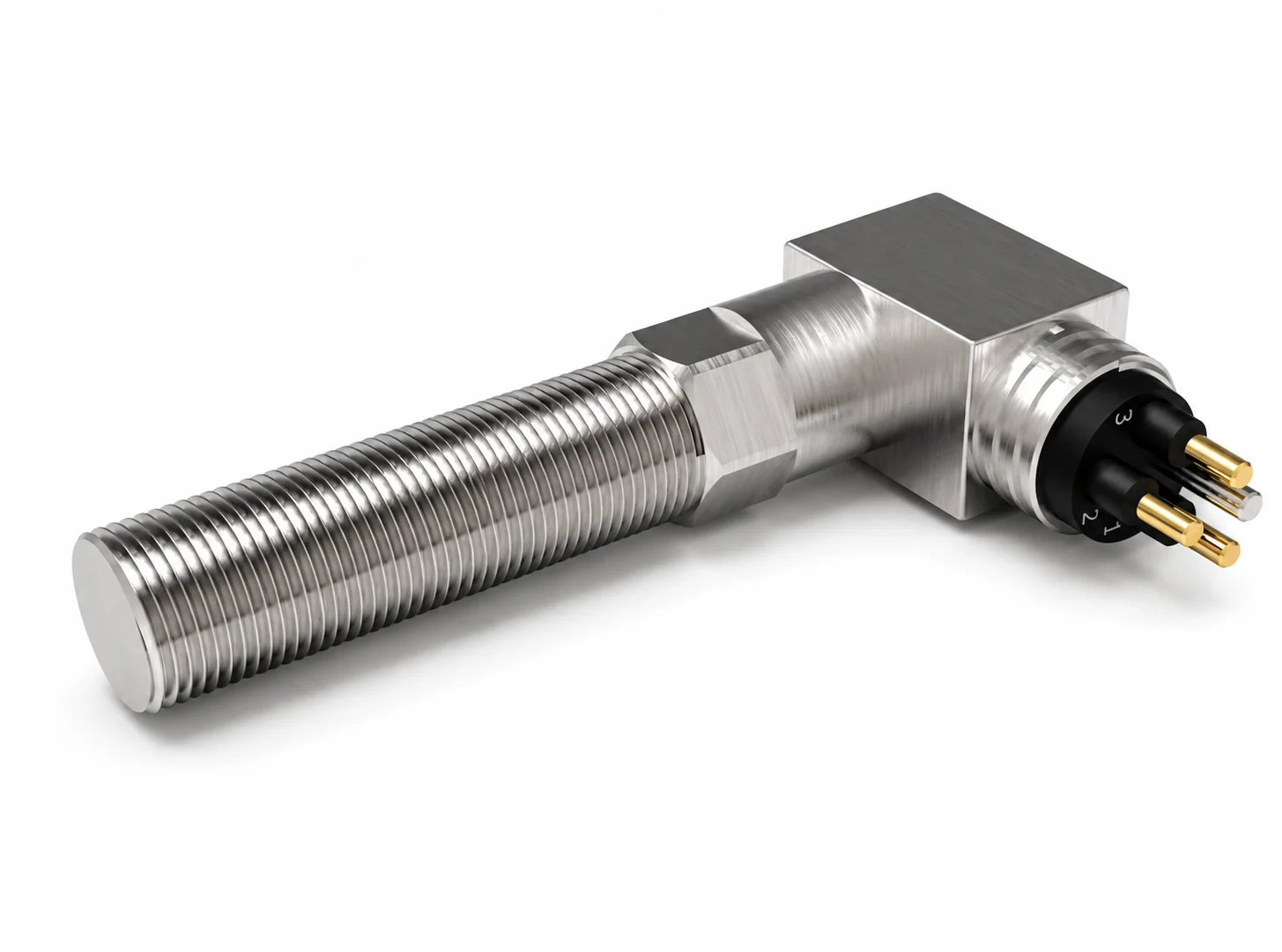

DPDT subsea proximity switch with a 5/8 UNF mounting thread and Micro Right Angle (90°) six-pin wet-mateable connector interface. Two electrically separate changeover circuits respond to the same sensing target, providing two switched outputs from one sensing point.
Review the cable exit arrangement when straight-out clearance is limited.
Choose the mounting and connection around the mechanism, then match the electrical and immersion duty.
Compare sensing methods ↗Request a CAD file for Subsea Proximity Switch - 5/8 UNF Thread - Micro Right Angle (90°) - DPDT. Our team will follow up by email.
Review the configuration, operating limits and interfaces together. Our engineering team can help resolve your requirements.
Contact us ↗| Housing Material | Stainless Steel 316 |
|---|---|
| Connector Type | Micro Circular |
| Connector Gender | Male |
| Sensing Range | Non-contact proximity switching |
| Output Type | Dry Contacts |
| Contact Form | DPDT — two changeover circuits |
| Depth Rating | 800 bar / 11,600 psi / 8,000 m sea water |
| Environmental Rating | Continuous submersion |
| Operating Temp | -40 to 60˚C / -40 to 140˚F |
| Connector pin allocation | Specify for DPDT configuration; request connection drawing |
| Number of Pins | 6 |
Specifications apply to the listed configuration. Include the part reference when requesting a different interface or operating duty.
Compare switches & browse technical files ↗
Request the approved datasheet and dimensional drawing for your configuration.
Contact us ↗Request a CAD file for Subsea Proximity Switch - 5/8 UNF Thread - Micro Right Angle (90°) - DPDT. Our team will follow up by email.
Agree inspection, electrical testing, pressure testing and supporting records as part of your quotation.
Rated for continuous submersion. Every DepthLink proximity switch is tested at multiple stages of manufacture.
Additional depth testing, witnessed tests and supporting test records can be agreed to your project requirements. Discuss test requirements ↗
This is a subsea switch configuration. Specify continuous immersion as an operating duty, including external pressure, duration, water temperature and media. The supplied assembly specification defines its limits, including the actuation interface and cable termination.
Specify the water conditions and the materials of the housing, connector, mounting hardware and target or striker. Material selection is specific to the installation; a corrosion-resistant housing does not establish the suitability of every connected component.
Select the target and operating gap for this configuration. A proximity switch indicates a defined position; it does not measure the complete travel of an actuator. Use the product drawing to establish the target, approach direction and mounting clearance.
Selecting a subsea proximity switch or submersible position sensor starts with the duty: valve position, actuator travel, gate position or tool engagement. Review the sensing target, mounting, switching load and operating conditions alongside the cable assembly.
Looking for an underwater limit switch? Compare proximity sensing with end-of-travel switching requirements.
Read this product’s operating principle ↗
