Confirm final materials and interfaces for your selected configuration.

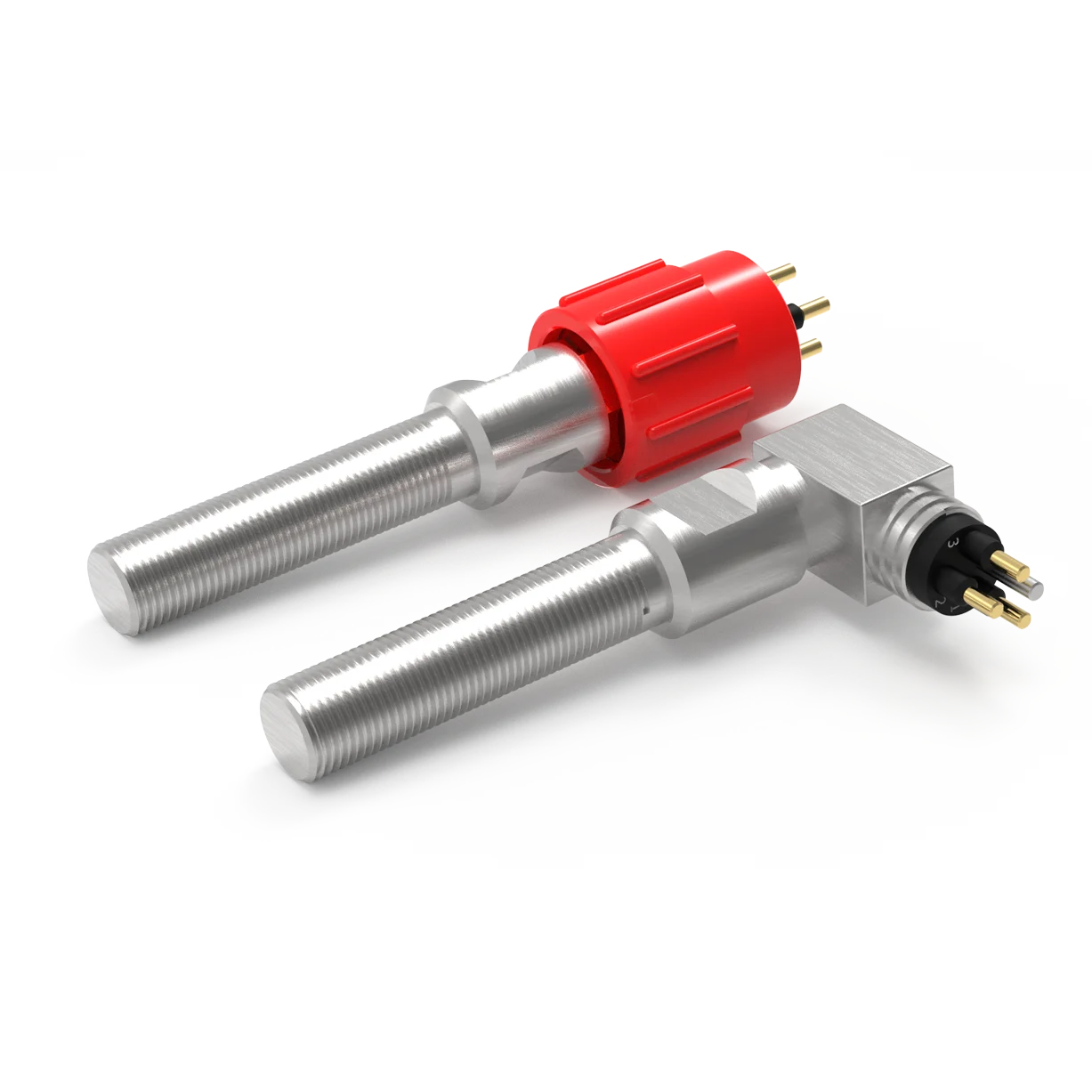

Robust stainless steel 316 housing engineered for subsea environments, delivering superior corrosion resistance and durability in high-pressure, saltwater applications. Built to withstand extreme depths and harsh conditions while maintaining structural integrity and reliable performance. Micro circular subsea rated connector provides reliable connectivity in demanding underwater environments. Features dry contact, volt-free contacts with SPDT changeover type configuration. Delivers two outputs—normally open and normally closed—enabling flexible switching logic. Rated to switch up to 1A, suitable for low-power control and signaling…
Match the mounting thread, target arrangement and subsea connection to your installation.
Choose the mounting and connection around the mechanism, then match the electrical and immersion duty.
Compare sensing methods ↗Request a CAD file for Subsea Proximity Switch - M12 Thread. Our team will follow up by email.
Review the configuration, operating limits and interfaces together. Our engineering team can help resolve your requirements.
Contact us ↗| Housing Thread | M12x1.0 |
|---|---|
| Housing Material | Stainless Steel 316 |
| Connector Type | Micro Circular |
| Connector Gender | Male |
| Number of Pins | 3 |
| Sensing Range | Non-contact proximity switching |
| Output Type | Dry Contacts |
| Contact Form | SPDT changeover |
| Max Switching Current @ 24 VDC | 1A |
| Depth Rating | 800 bar / 11,600 psi / 8,000 m sea water |
| Environmental Rating | Continuous submersion |
| Operating Temp | -40 to 60˚C / -40 to 140˚F |
Specifications apply to the listed configuration. Include the part reference when requesting a different interface or operating duty.
Compare switches & browse technical files ↗
Request the approved datasheet and dimensional drawing for your configuration.
Contact us ↗Request a CAD file for Subsea Proximity Switch - M12 Thread. Our team will follow up by email.
Agree inspection, electrical testing, pressure testing and supporting records as part of your quotation.
Rated for continuous submersion. Every DepthLink proximity switch is tested at multiple stages of manufacture.
Additional depth testing, witnessed tests and supporting test records can be agreed to your project requirements. Discuss test requirements ↗
This is a subsea switch configuration. Specify continuous immersion as an operating duty, including external pressure, duration, water temperature and media. The supplied assembly specification defines its limits, including the actuation interface and cable termination.
Specify the water conditions and the materials of the housing, connector, mounting hardware and target or striker. Material selection is specific to the installation; a corrosion-resistant housing does not establish the suitability of every connected component.
Select the target and operating gap for this configuration. A proximity switch indicates a defined position; it does not measure the complete travel of an actuator. Use the product drawing to establish the target, approach direction and mounting clearance.
Selecting a subsea proximity switch or submersible position sensor starts with the duty: valve position, actuator travel, gate position or tool engagement. Review the sensing target, mounting, switching load and operating conditions alongside the cable assembly.
Looking for an underwater limit switch? Compare proximity sensing with end-of-travel switching requirements.
Read this product’s operating principle ↗
