Circular Cordset - Single End - 3 Pin Female - IL3F
Open full-size image ↗

Confirm final materials and interfaces for your selected configuration.

SUBSEA ENGINEERING

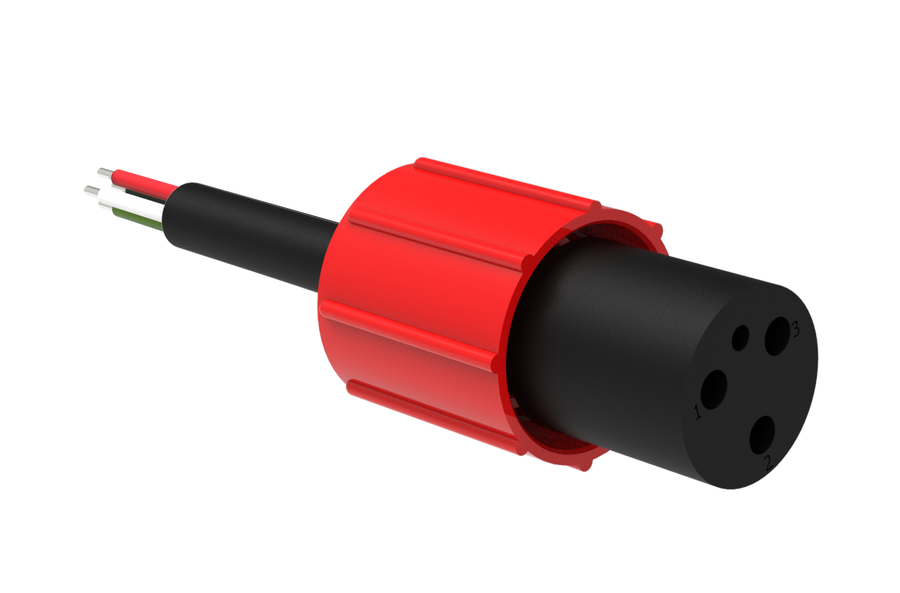

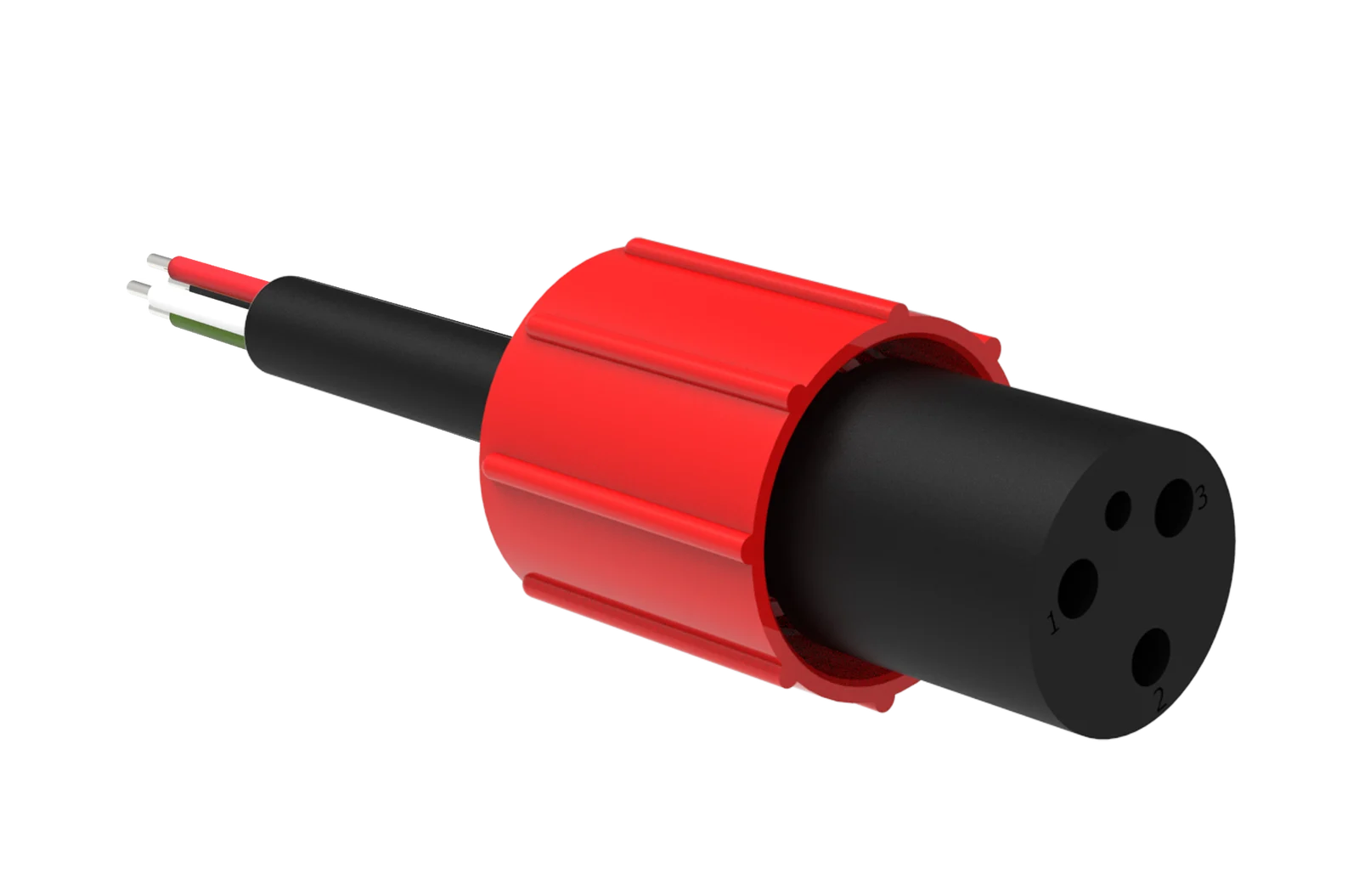

Circular Cordset - Single End - 3 Pin Female - IL3F

Circular series feature enhanced sealing capabilities and uniform contact design. The connectors are available in various standard shell sizes, with 1 to 21 contacts rated at 600V and 10 A per contact. Contact Face Material: Made of durable rubber Underwater Operation: Can be safely plugged in and unplugged underwater when the power is turned off

Contact us ↗sales@depth-link.com
SPECIFICATION & SELECTION

Technical specifications.

Review the configuration, operating limits and interfaces together. Our engineering team can help resolve your requirements.

Contact us ↗
Connector GenderFemale
Number of Pins3

Specifications apply to the listed configuration. Include the part reference when requesting a different interface or operating duty.

TECHNICAL DOCUMENTATION

Specify with confidence.

Drawings & datasheets

Request the approved datasheet and dimensional drawing for your configuration.

Contact us ↗
Testing & verification

Agree inspection, electrical testing, pressure testing and supporting records as part of your quotation.

OPERATING PRINCIPLE · Circular Cordset - Single End - 3 Pin Female - IL3F

How this assembly carries the signal between interfaces

  1. Define each end

    Match the connector, contact arrangement and termination at each end to the equipment drawing. The free-lead end must be terminated inside the specified equipment interface.

  2. Route the cable

    Choose length and construction for the installation. Allow the specified bend radius, strain relief and movement without loading the connector or termination.

  3. Connect and verify

    Confirm pin-to-pin allocation, shielding and electrical checks for the finished assembly. Use the approved mating procedure; submersion capability alone does not permit underwater mating.

For this product: Review this assembly’s actual connector interfaces, conductor allocation, cable construction, installation route and complete assembly rating.

Contact us ↗sales@depth-link.com
PRODUCT + APPLICATION ENGINEERING

Custom underwater cable assemblies, configured for your installation.

Specify the whole connection: single-ended or double-ended subsea cable assemblies, proximity switch leads and custom harness requirements. Cable construction, connector interfaces, length, pin assignment and termination must suit the equipment and operating environment.
