Micro Circular - Single Ended

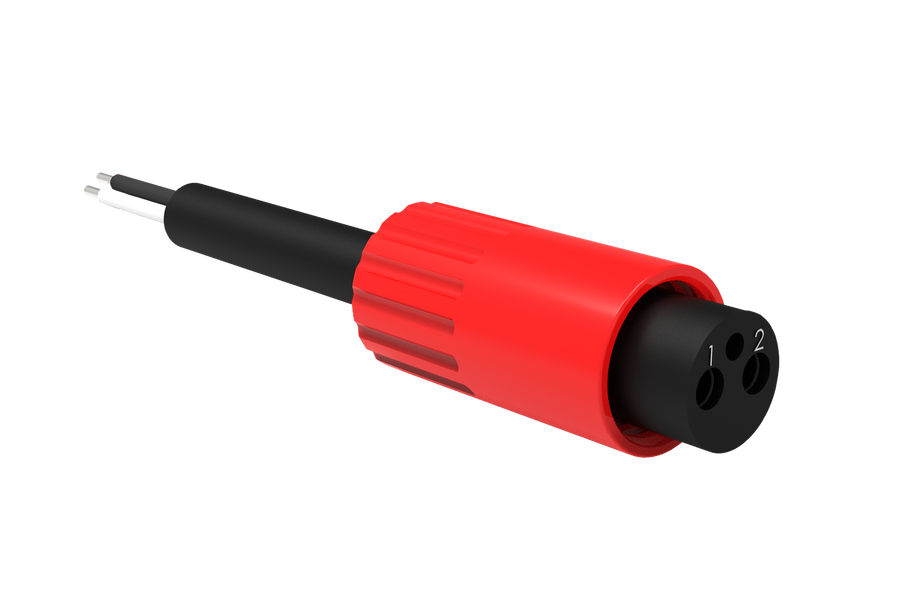

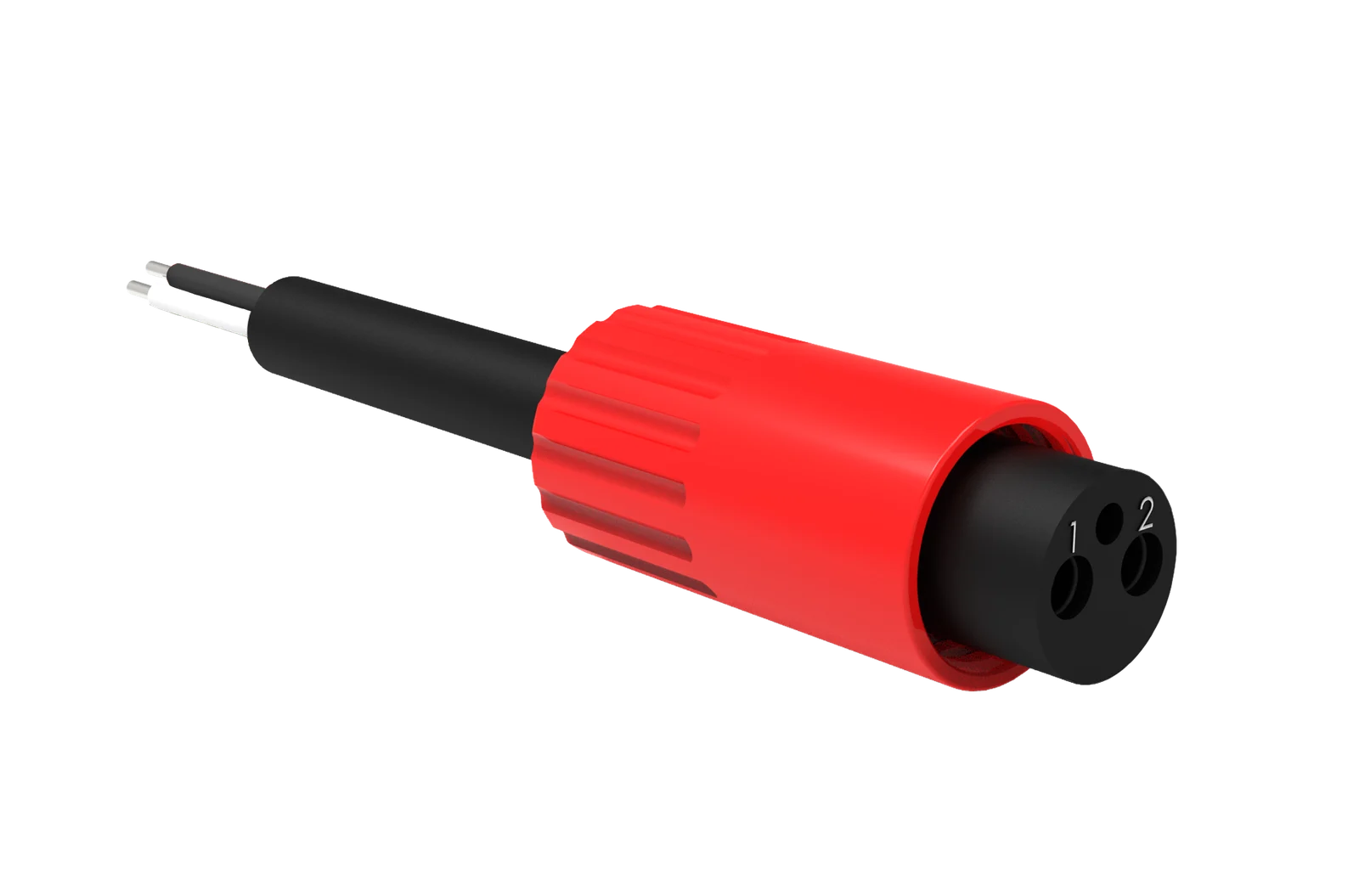

Micro Circular Cordset - Single End - 2 Pin Female - MCIL2F
Built to Order
2-4 Weeks
3,000m
Max Depth
300 Bar
Pressure Rating
SIL-Capable
Safety Rated
Micro Circular series features enhanced sealing capabilities and uniform contact design. The connectors are available in various standard shell sizes, with 1 to 21 contacts rated at 300 V from 5 to 10 A per contact.
- Contact Face Material: Made of durable rubber
- Underwater Operation: Can be safely plugged in and unplugged underwater when the power is turned off
Technical Specifications
Connector TypeMicro Circular - Inline
Connector GenderFemale to Pigtails
Number of Pins2 Pins
Depth RatingMated: 1,400 bar / 20,300 psi ¦ Open Face: 800 bar / 11,600 psi
Operating Temp-40 to 60˚C / -40 to 140˚F
Mating Cycles> 500
Body MaterialChloroprene rubber
StandardIEC 61892 / NORSOK U-009
Part Number
—
Cable Length
5M
Need a non-standard length? Select Custom and contact us.
