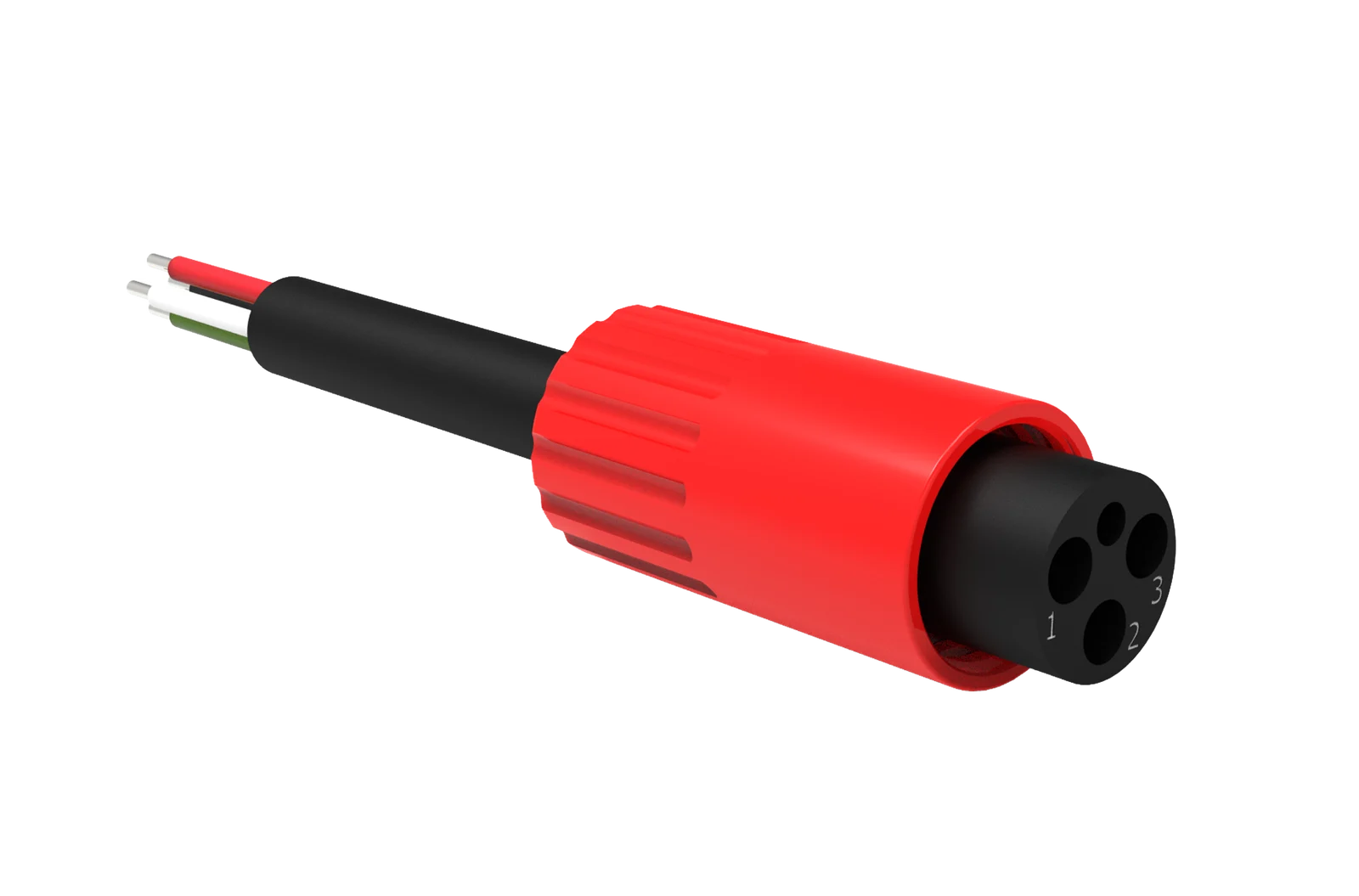

Micro Circular Cordset - Single End - 3 Pin Female - MCIL3F
Micro Circular series features enhanced sealing capabilities and uniform contact design. The connectors are available in various standard shell sizes, with 1 to 21 contacts rated at 300 V from 5 to 10 A per contact. Contact Face Material: Made of durable rubber Underwater Operation: Can be safely plugged in and unplugged underwater when the power is turned off
Technical specifications.
Review the configuration, operating limits and interfaces together. Our engineering team can help resolve your requirements.
Contact us ↗| Housing Material | Chloroprene rubber |
|---|---|
| Connector Type | Micro Circular - Inline |
| Connector Gender | Female to Pigtails |
| Number of Pins | 3 Pins |
| Depth Rating | Mated: 1,400 bar / 20,300 psi ¦ Open Face: 800 bar / 11,600 psi / 8,000 m sea water |
| Operating Temp | -40 to 60˚C / -40 to 140˚F |
| Mating Cycles | > 500 |
Specifications apply to the listed configuration. Include the part reference when requesting a different interface or operating duty.
Specify with confidence.
Drawings & datasheets
Request the approved datasheet and dimensional drawing for your configuration.
Contact us ↗Testing & verification
Agree inspection, electrical testing, pressure testing and supporting records as part of your quotation.
Custom underwater cable assemblies, configured for your installation.
Specify the whole connection: single-ended or double-ended subsea cable assemblies, proximity switch leads and custom harness requirements. Cable construction, connector interfaces, length, pin assignment and termination must suit the equipment and operating environment.
