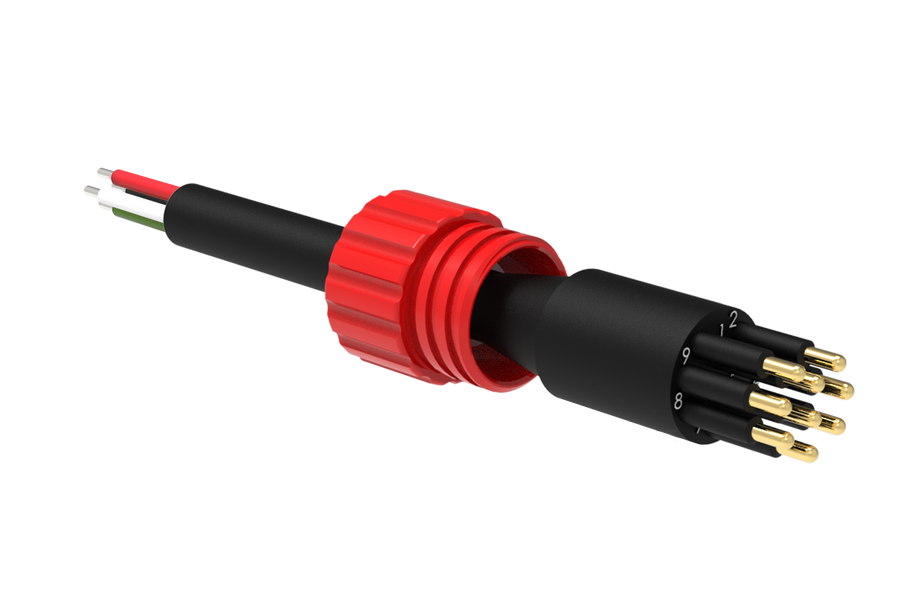

Micro Circular Cordset - Single End - 9 Pin Male - MCIL9M

Chloroprene rubber

Micro Circular series features enhanced sealing capabilities and uniform contact design. The connectors are available in various standard shell sizes, with 1 to 21 contacts rated at 300 V from 5 to 10 A per contact.

  • Contact Face Material: Made of durable rubber
  • Underwater Operation: Can be safely plugged in and unplugged underwater when the power is turned off
Micro Circular Cordset - Single End - 9 Pin Male - MCIL9M
Micro Circular Cordset - Single End - 9 Pin Male - MCIL9M 1
Micro Circular Cordset - Single End - 9 Pin Male - MCIL9M 2
Technical Specifications
Mechanical Features
Housing MaterialChloroprene rubber
Connector GenderMale to Pigtails
Number of Pins9 Pin
Environmental
Depth RatingMated: 1,400 bar / 20,300 psi ¦ Open Face: 800 bar / 11,600 psi / 8,000 m sea water
Operating Temp-40 to 60˚C / -40 to 140˚F
Mating Cycles> 500
Cable Length 5M
Need a non-standard length? Select Custom and contact us.
