DEPTHLINK / PRODUCT CATALOGUE

Find your starting point.

Explore the complete catalogue. Configure the detail with our engineering team.

Connector platforms ↗
START WITH THE FUNCTION

What do you need to detect or control?

Choose the job first. Then compare the mounting, connection and material options within that range.

Read the selection guide ↗
Contact us ↗
Why choose one proximity switch over another?

1. Mounting & space

Match the body, thread and cable exit to your drawing. A different thread or larger housing does not, by itself, mean better sensing performance.

2. Connection & cable

Choose the Nano, Micro, Circular or cable-connected arrangement around the required mating interface, pin assignment and cable route. Connector names alone do not establish compatibility.

3. Materials & operating duty

Specify the body and connector materials separately, together with the water conditions, pressure, temperature and electrical load. Confirm the final assembly against its agreed specification.

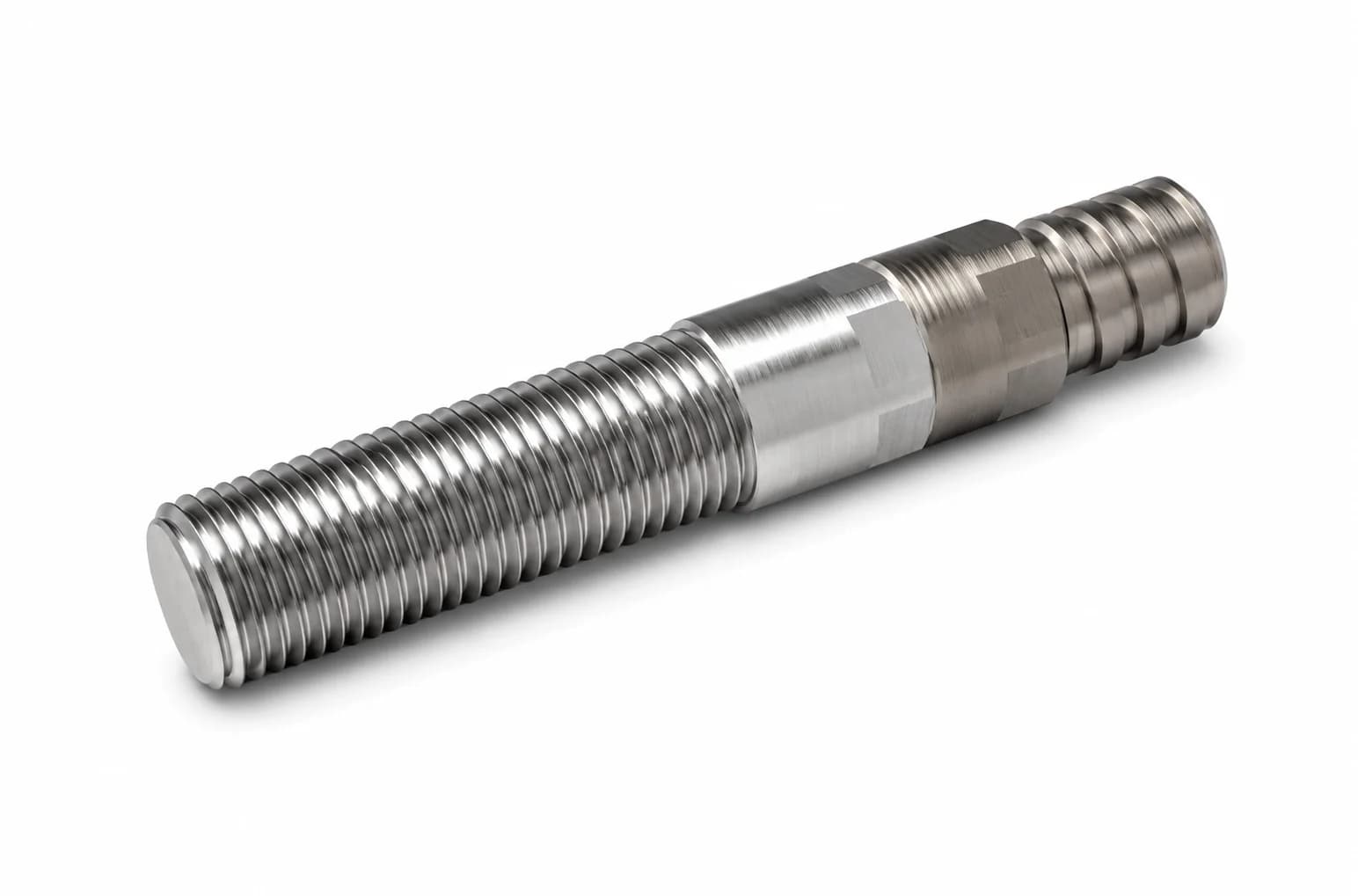

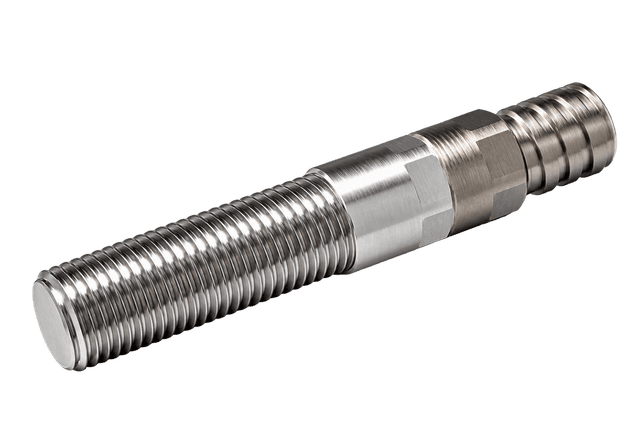

Nano M12 subsea proximity switch
NANO M12 · ULTRA-COMPACT

7,000 m depth capability. An M12 footprint.

700 bar external pressure · 12 mm nominal mounting diameter · Wet-mateable Nano connector

Explore the Nano M12 ↗
Compare connector families & mounting options
THE DEPTHLINK NANO / ULTRA-COMPACT SUBSEA SWITCH

7,000 m depth capability.
An M12 footprint.

700 bar external-pressure capability in an ultra-compact M12 switch with an integrated Nano subsea connector. For deep-water position feedback where mounting space and connector clearance matter.

700 barExternal pressure rating
Approximately 7,000 m seawater · Nano M12 SS configuration
M12 mountingWet-mateable Nano interfaceTitanium connector
Explore the Nano M12 ↗

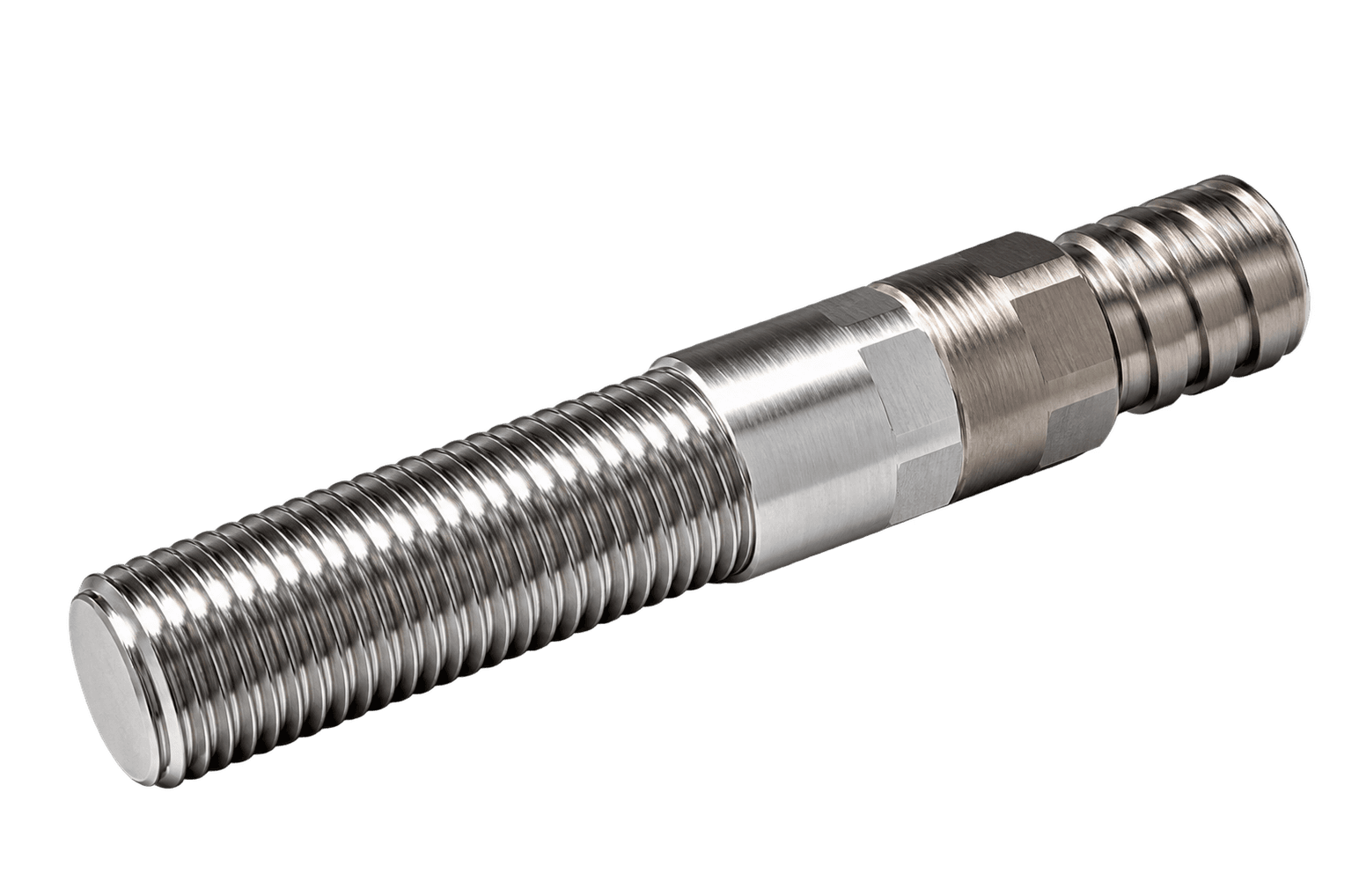

Compact DepthLink Nano M12 subsea proximity switch
12 mmNominal M12 thread diameter01020304050mmSize reference · image enlarged for detail
Stainless-steel switch body · titanium connector
CHOOSE THE SWITCH CONNECTION

Help me choose a switch ↗

Three connector families.
Four interface options.

Nano, Micro and Circular are wet-mateable connector families. Choose Micro Straight or Micro Right Angle (90°) to suit the cable route. M12, M18 and UNF describe the switch mounting thread.

Connection and mounting options

The range we’re building towards. Listed products below show today’s configurations; contact us about other combinations and your required depth rating.

ConnectionPlanned mounting optionsConfiguration
NanoM12 · M18 · 5/8″ UNFDiscuss this option ↗

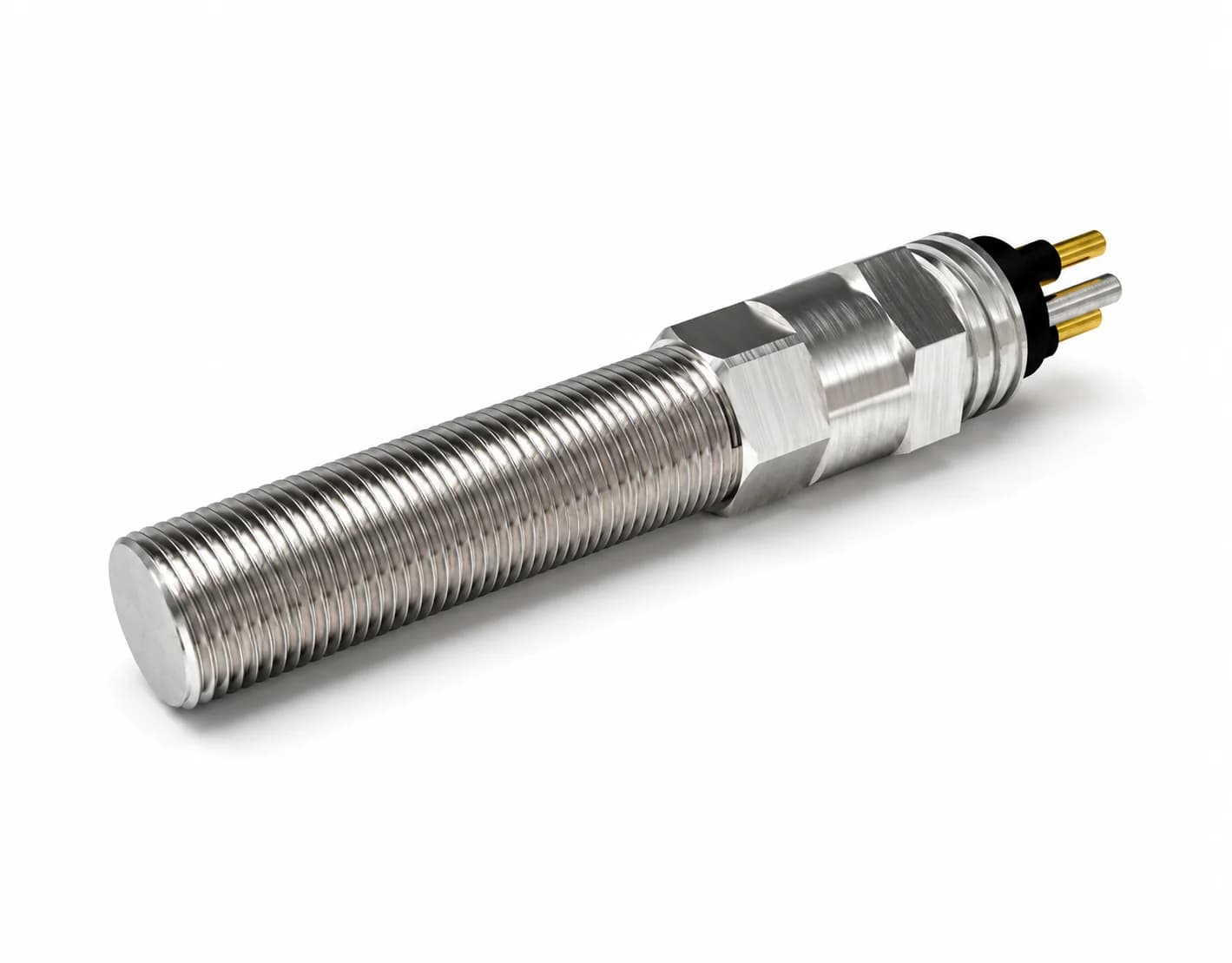

Micro StraightM18 · 5/8″ UNF · 3/4″ UNFDiscuss this option ↗

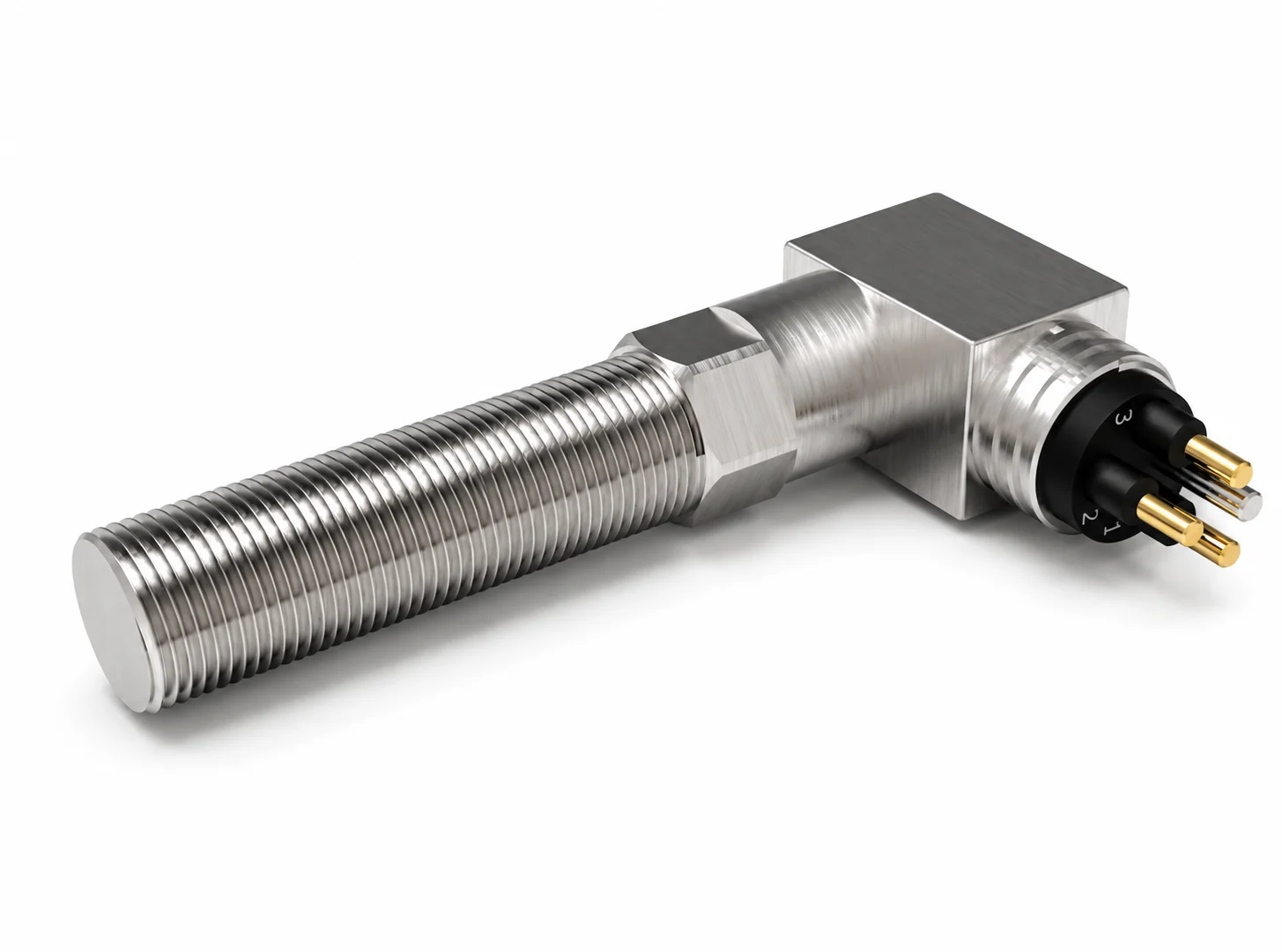

Micro Right Angle (90°)M18 · 5/8″ UNF · 3/4″ UNFDiscuss this option ↗

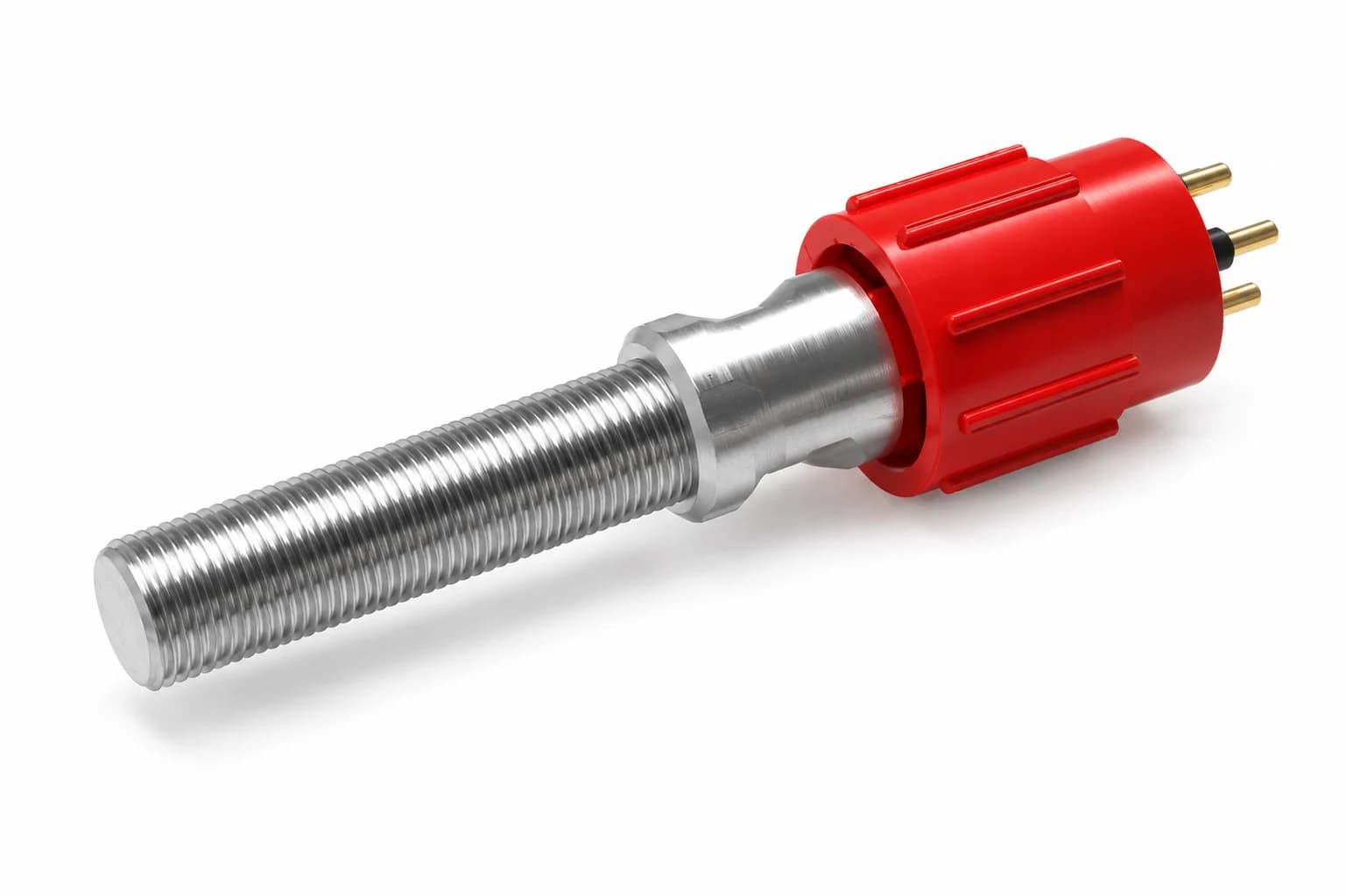

CircularM18 · 5/8″ UNFDiscuss this option ↗

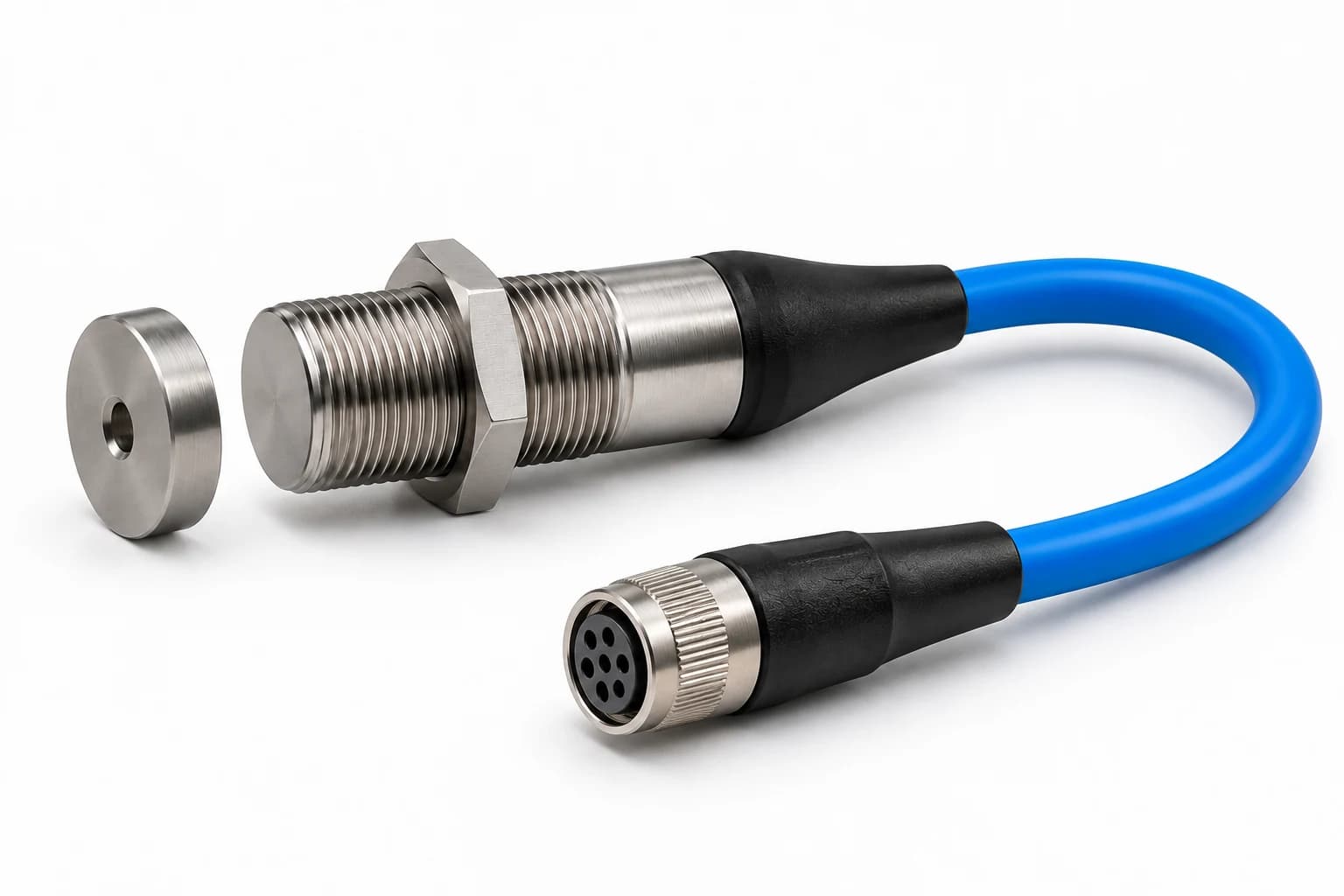

Integral cableMounting and cable exit to suit the applicationDiscuss this option ↗

Specify depth with the complete assembly. The Nano M12 SS configuration is rated to 700 bar (approximately 7,000 m seawater). Other combinations need their own agreed pressure/depth rating, including the connector and cable termination.

Compare specifications & technical files ↗

COMPARE THE OPTIONS

Switches & sensors by function

Each option below explains its intended role. Choose by the installation requirement, not appearance alone.

Use product selectorCompare sensing principles ↗
17 matching options
